Sewage Treatment Plant - UAE

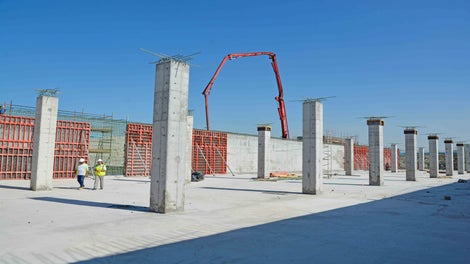

120 m long walls poured with TRIO wall formwork in one continuous pour

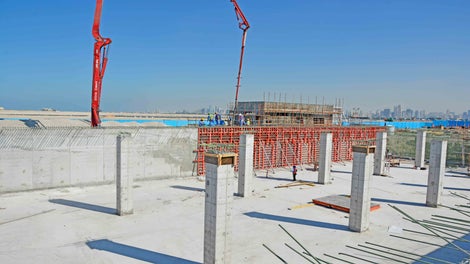

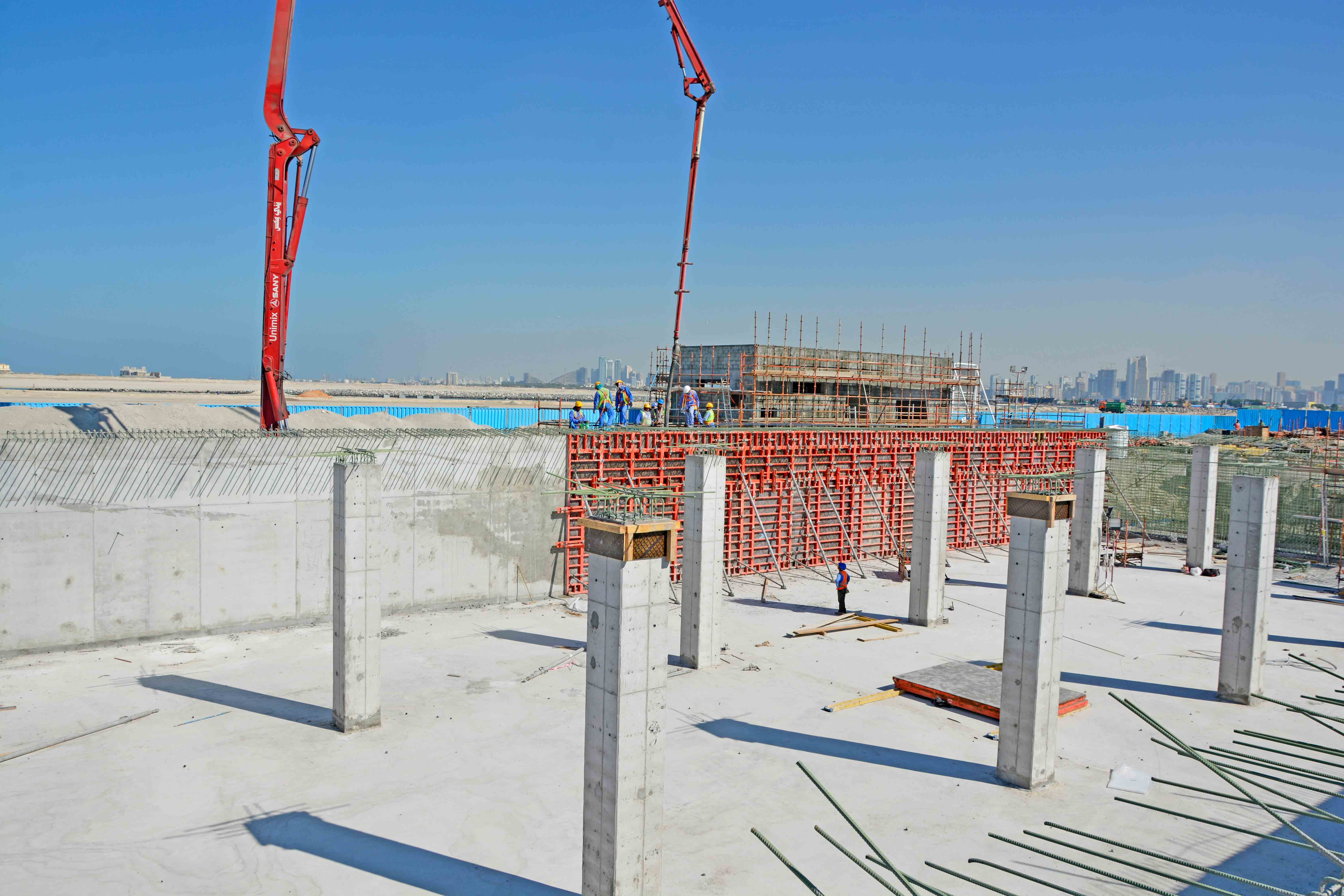

TRIO wall formwork is used on this project

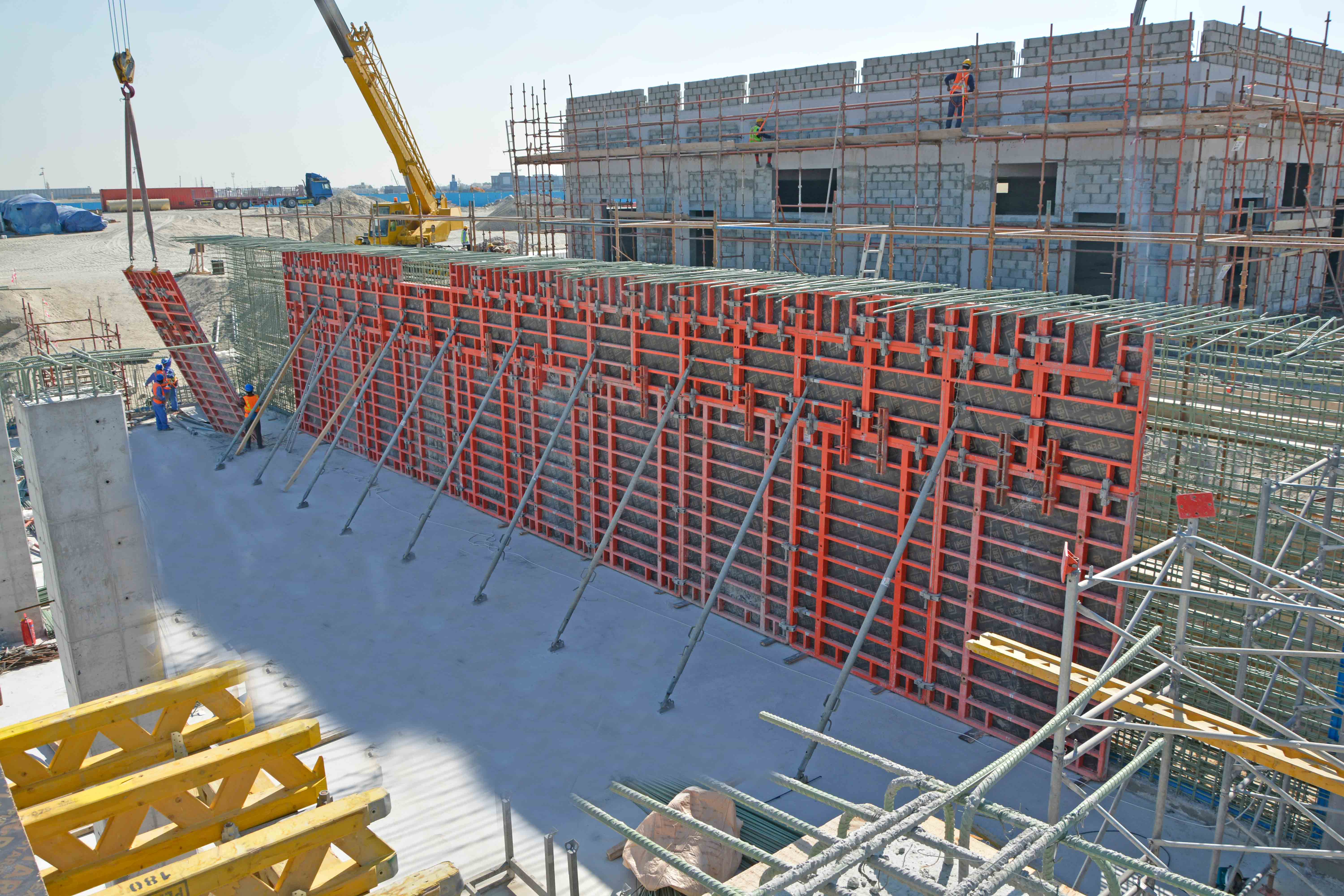

The walls of this TSE Storage Tank are being poured with TRIO wall formwork

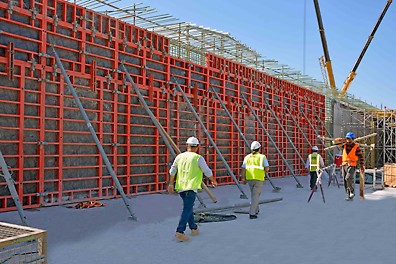

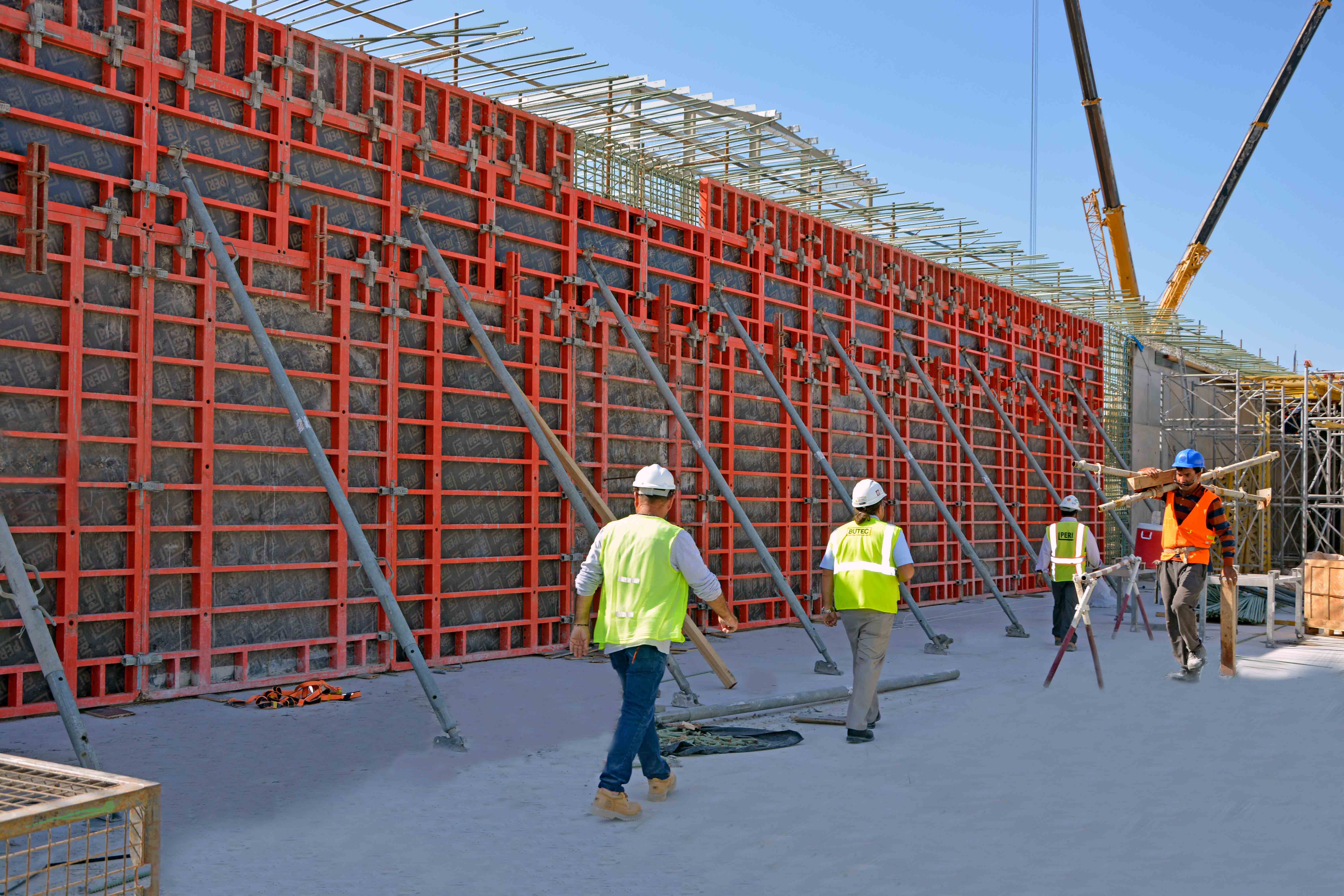

These walls are 6 meters high and stretch up to 120m long

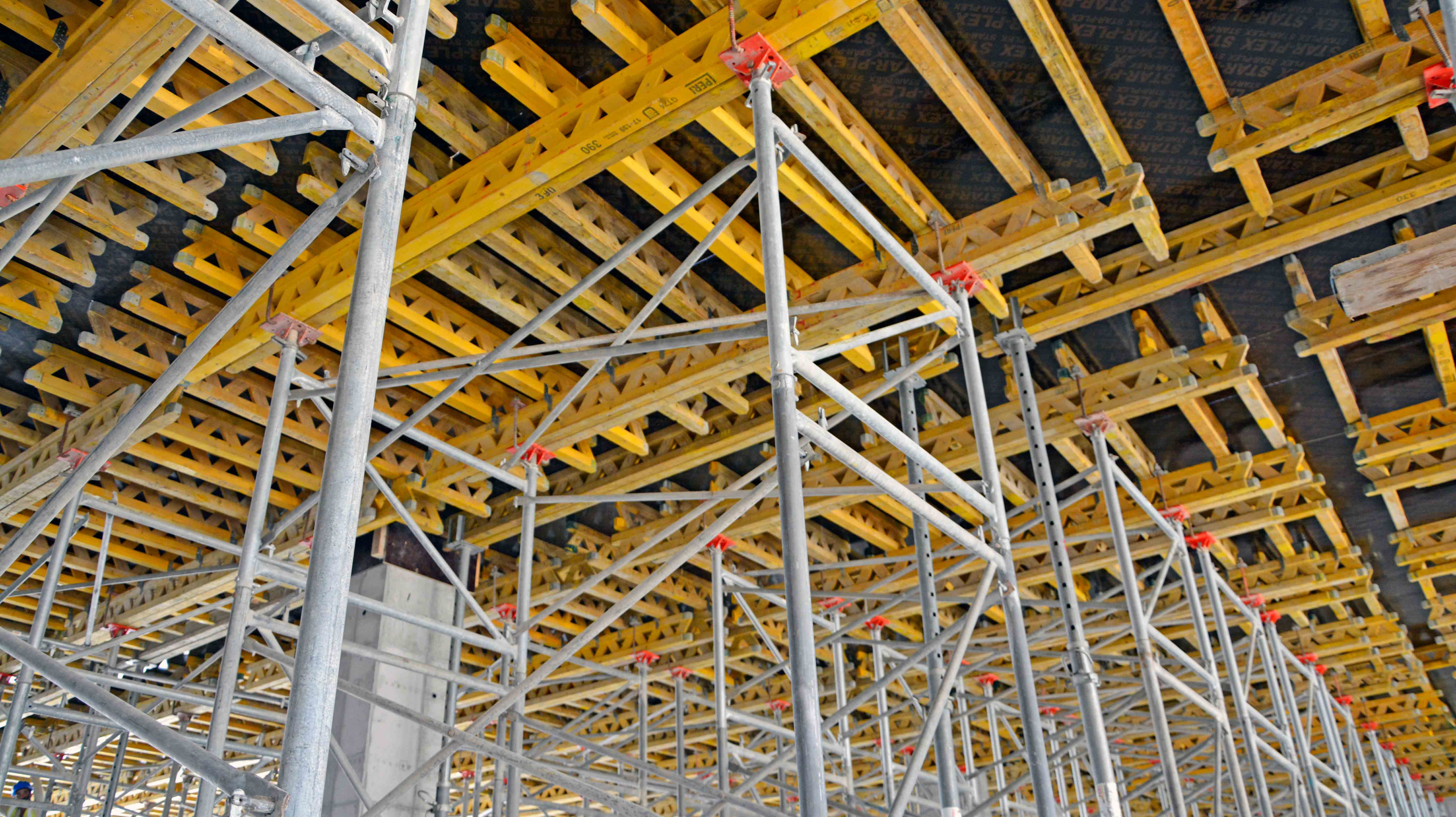

Slabs are poured with GT24 girders and supported by PD8 shoring system

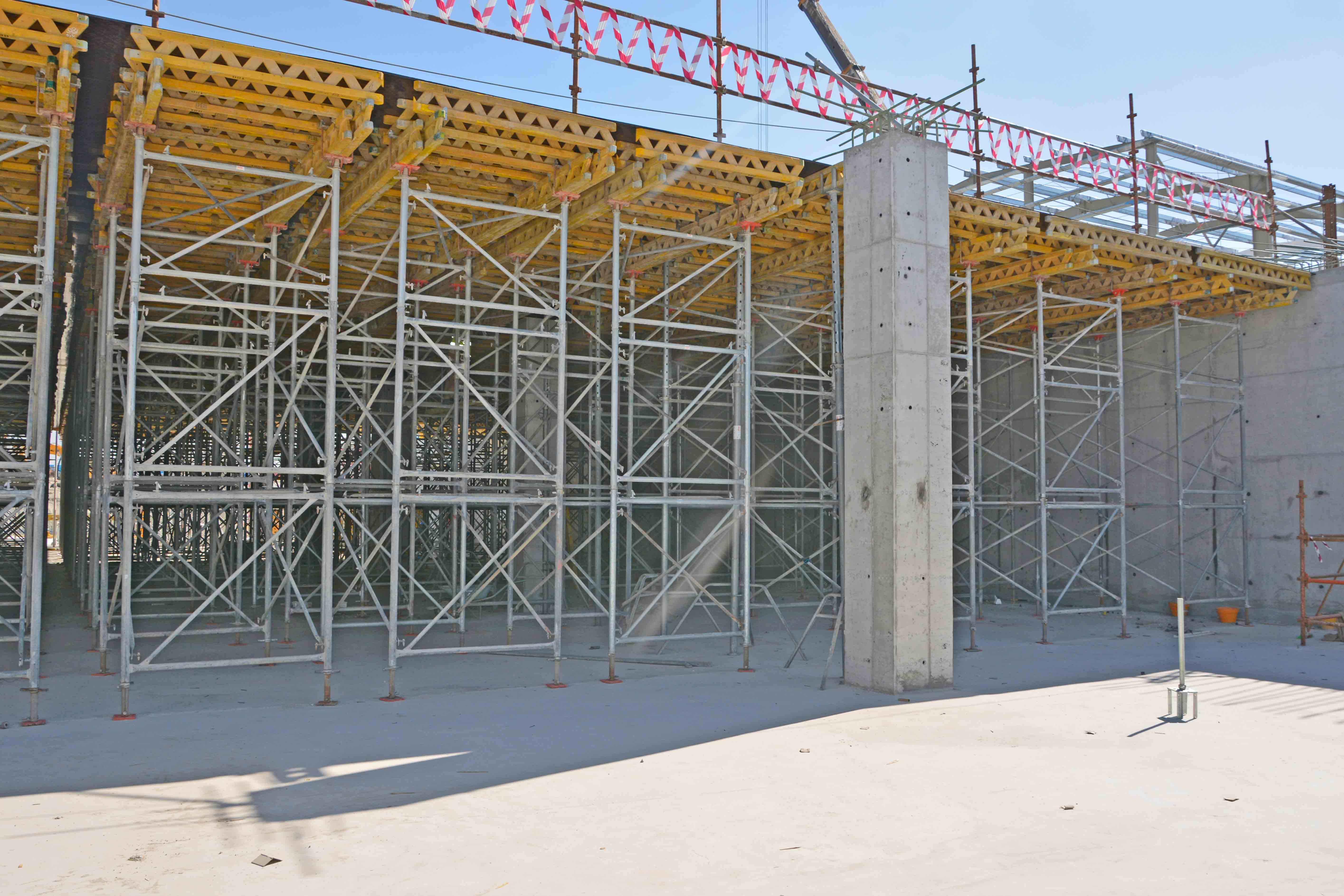

PD8 Shoring system is used for the slabs

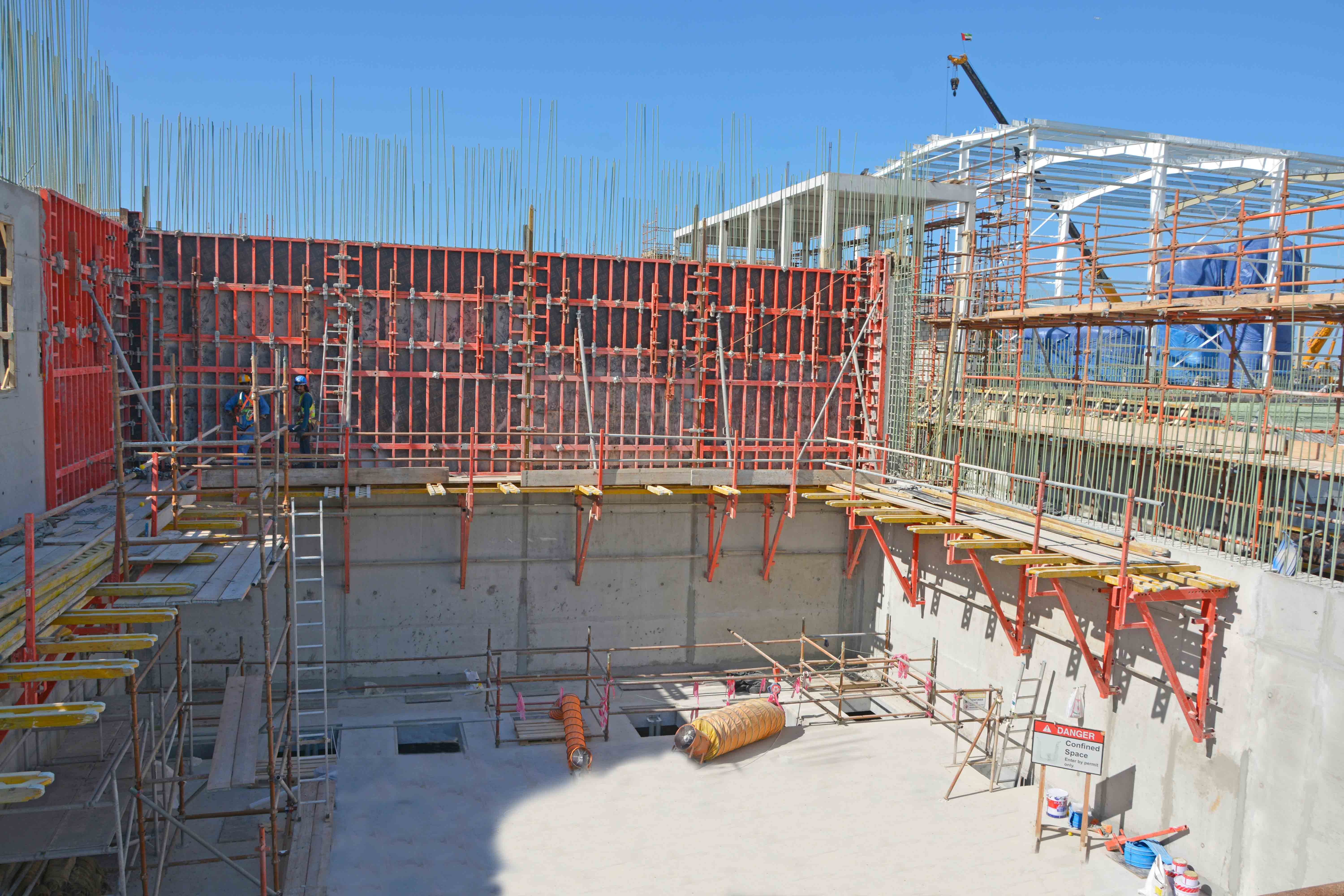

CB Climbing formwork used with TRIO wall formwork for 12 m high walls
1
/
7

Project data

Location: Deira Islands, United Arab Emirates

  • Sewage Treatment Plant in Deira Islands
  • 4 main structures built with PERI
  • Duration: 18 months

Requirements

  • A formwork system that allows fast working operations
  • Walls of 120 m long to be casted in one continuous pour
  • Wall height between 3.95 m and 6.6 m
  • A formwork system for 6 m high columns

Customer

Butec

Customer's benefit

  • Massive time saving through TRIO system and a minimum maintenance time spent on concrete finishes
  • High safety complance with CB working platforms providing optimum safety for workers
Sewage Treatment Plant
Mohammad Kraimesh
Construction Manager

"For fast track project and prompt usage of resources, we utilize TRIO system with professional support from PERI Sales & Engineering teams. Return of experience was optimum dealing with PERI Engineering & Sales teams. PERI solutions are always Fast, Safe and Reliable."

PERI solution

  • A total of 1,500 lm of walls casted with TRIO panel formwork
  • 712 sqm of TRIO formwork were used for the structure
  • 6-meter high columns were formed with LICO
  • PD8 shoring system used with GT24 girders to pour the slabs
  • Walls with pouring height of 54 lm were concreted in one continuous pour
  • 16.33 m wall height are poured in 3 stages provided with CB 160 as working platform
