The Project
Impressions from the project process
With the help of the PERI UP Rosett modular scaffold system, 24-metre high shoring was erected at the main entrance of the temple. Even at large heights, up to 40 kN per leg could be safely and reliably transferred.

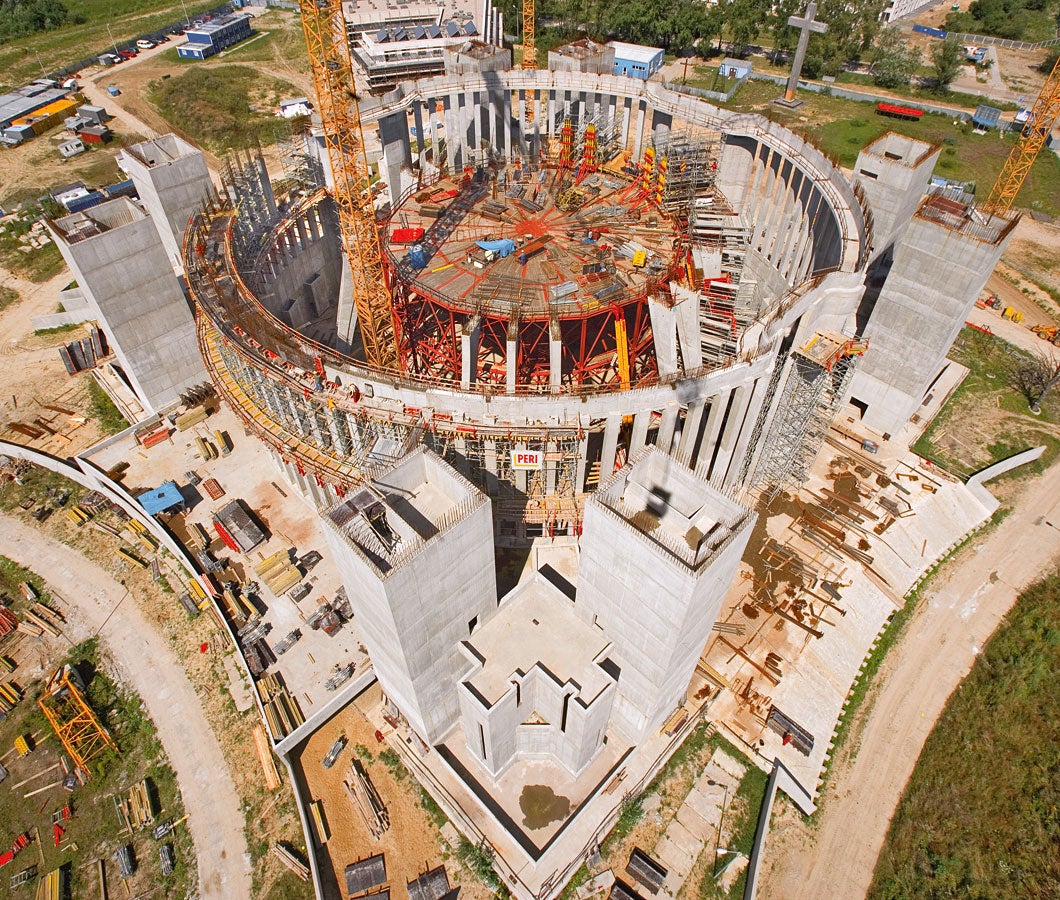

The construction of the tempel consists of reinforced concrete frames arranged in circle on a base area in the form of a Greek cross – a cross with four equally long arms.

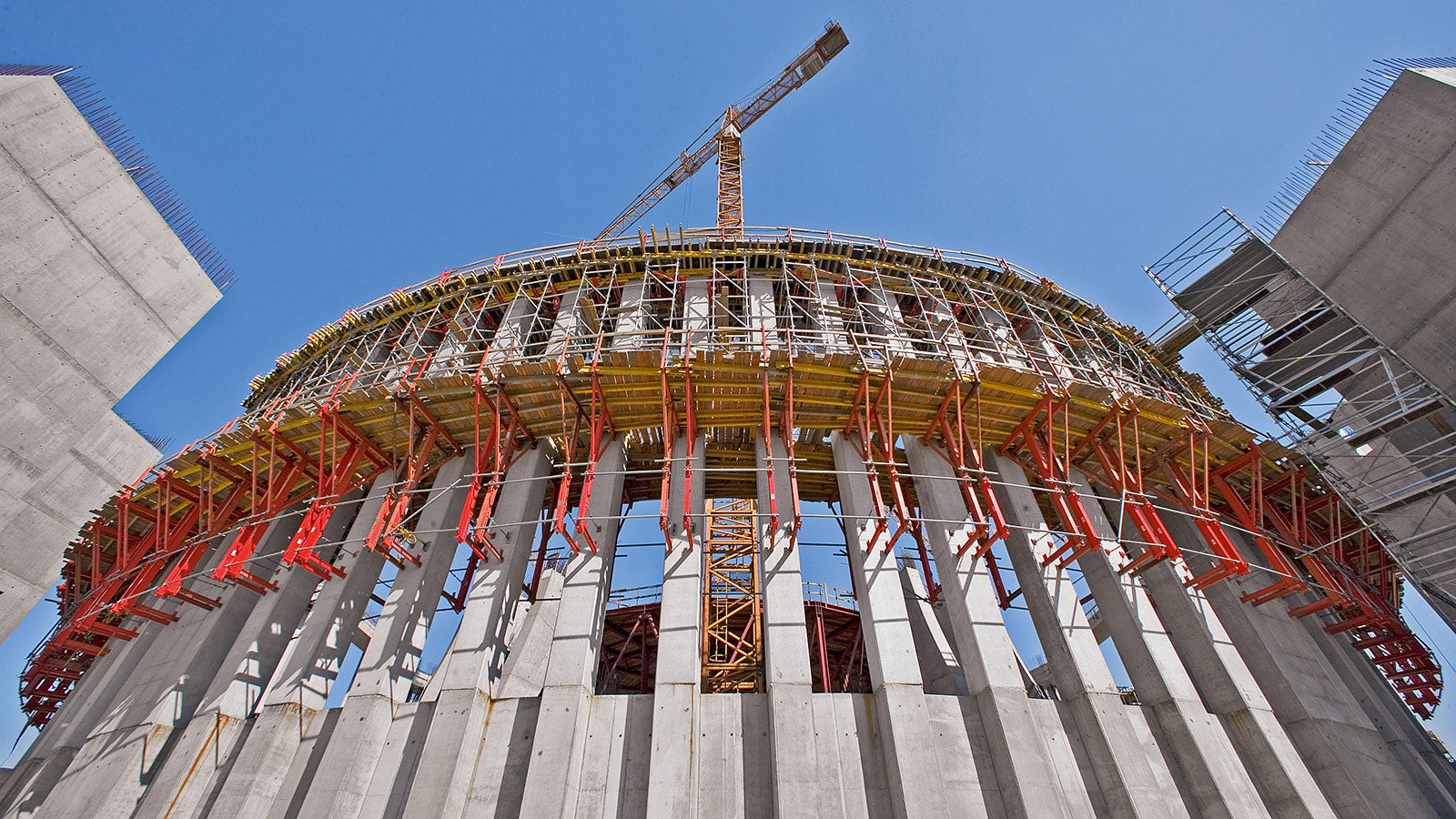

The external ring of columns consists of four circular arc sections - each with 16 reinforced concrete columns – which have a square cross-section of 80 cm x 80 cm.

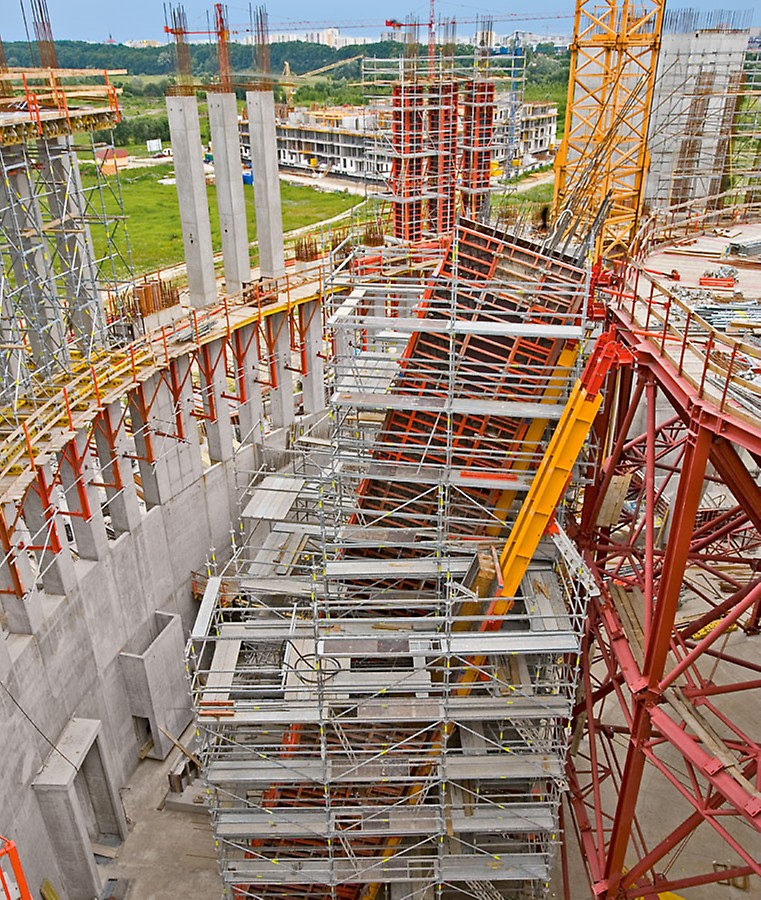

Rentable PERI formwork and scaffolding systems as well as project-specific special constructions were ideally combined.

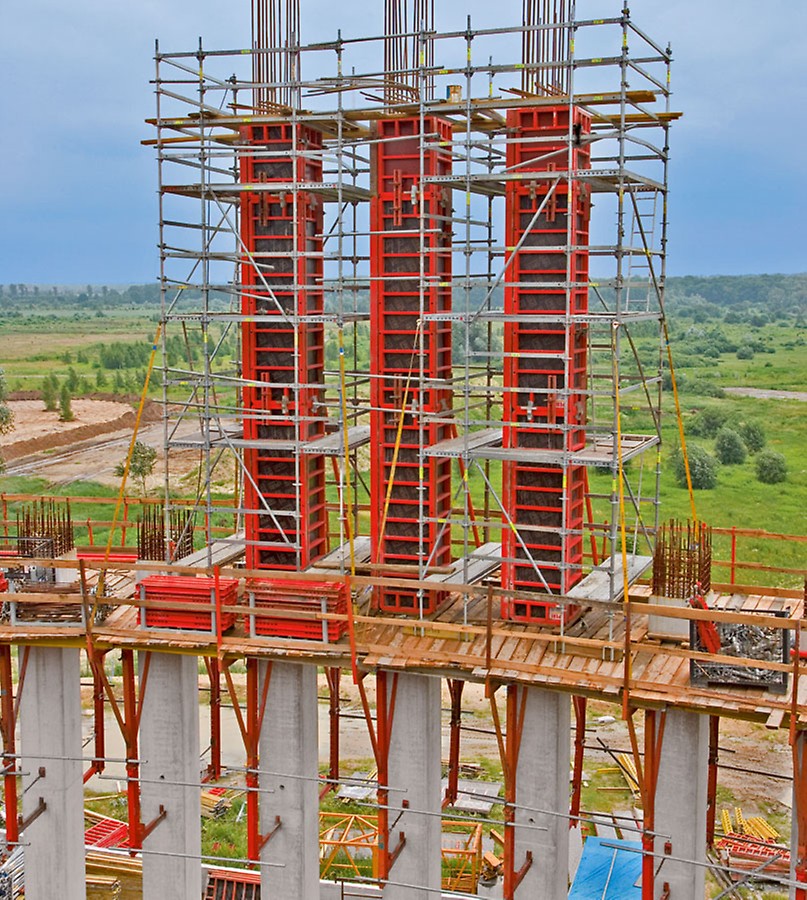

The PERI UP Rosett modular scaffold on KG 240 climbing brackets, as well as TRIO wall formwork elements, for reinforcement work and forming the reinforced concrete columns.

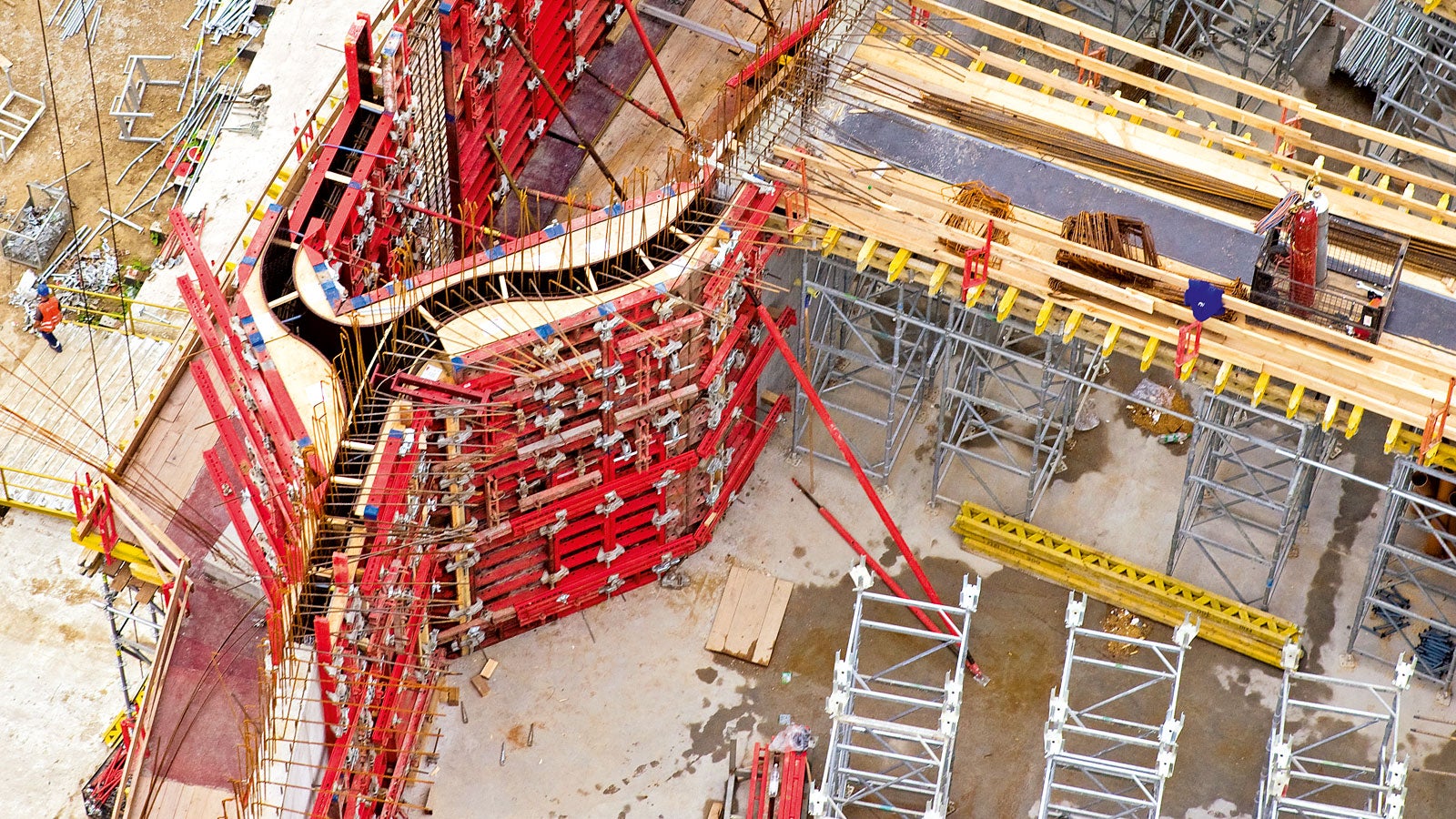

Accurately dimensioned pre-assembled special elements within TRIO panel formwork for forming the curved building geometry.

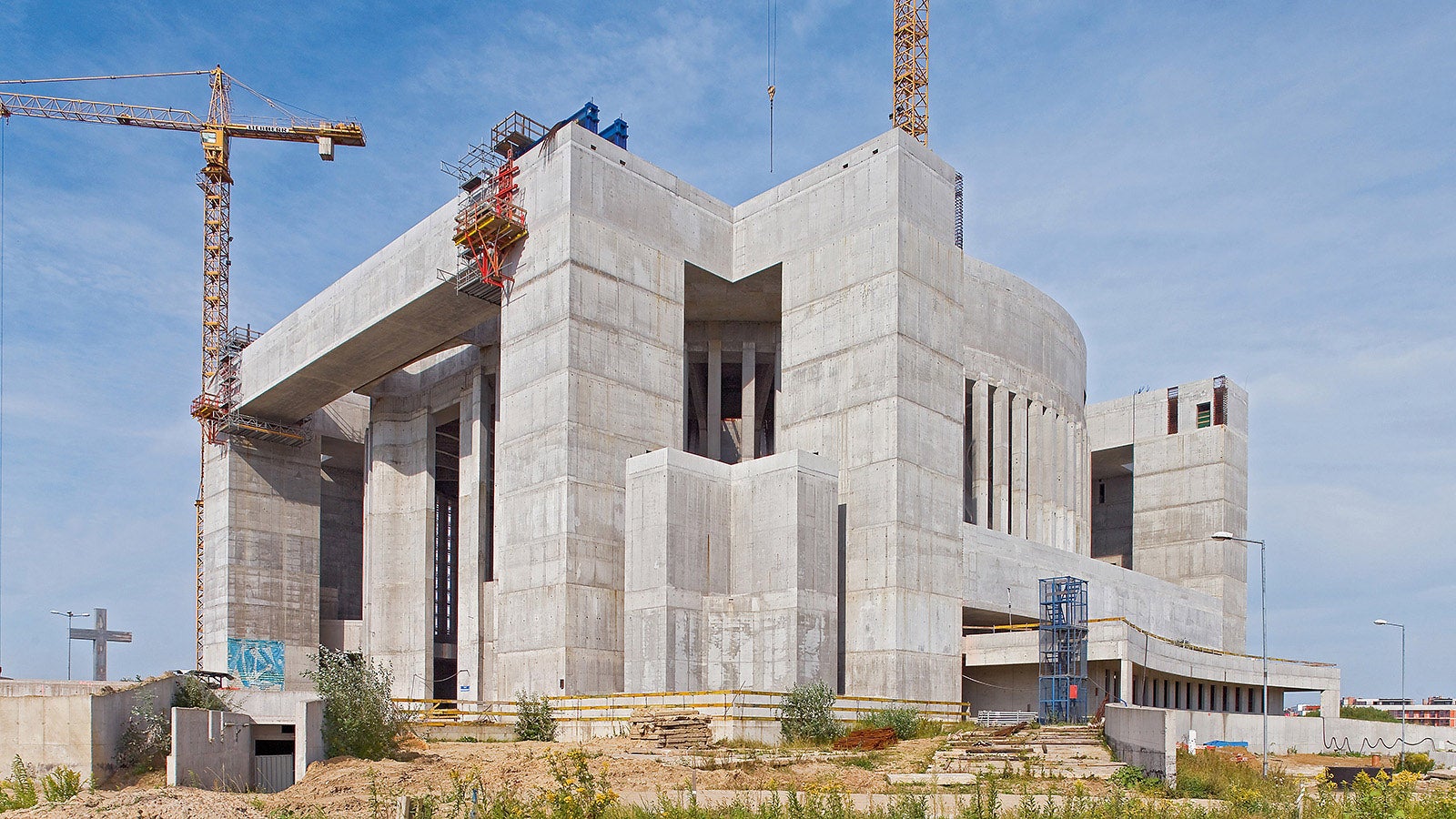

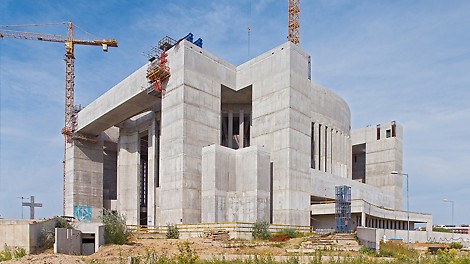

With competence, experience and a comprehensive PERI formwork and scaffolding solution, this extraordinary temple building in Warsaw was efficiently and economically realized.

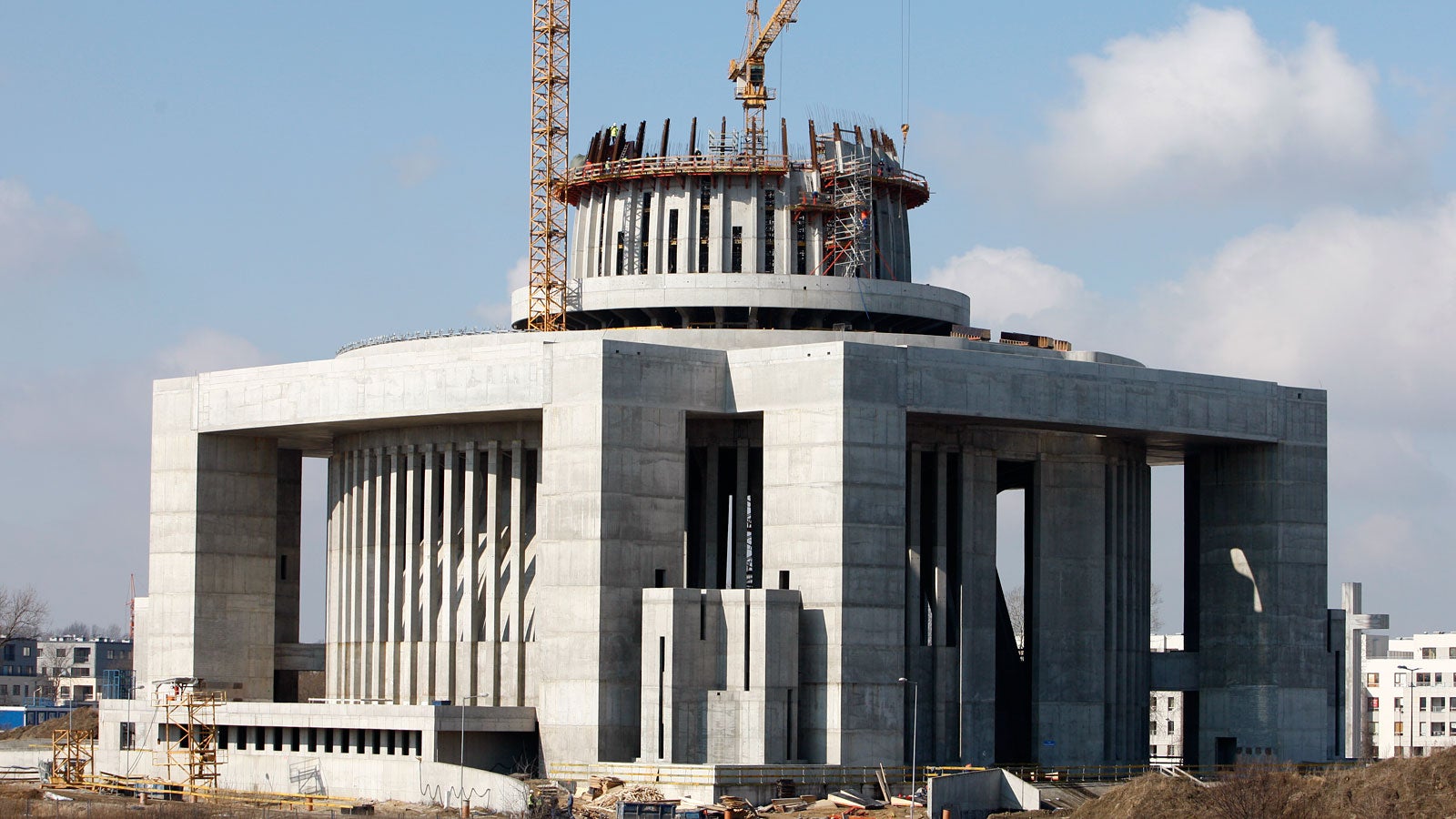

The “Temple of the Divine Promise” is considered as the most important ecclesiastical structures built during the last three centuries in Poland.
Project Information
For the handling of such a complex building of this size, it was indispensable to have a proficient partner for the required types of formwork and scaffolding. The diversity of the PERI systems guaranteed our safe and efficient work sequences during the construction of the concrete structure – without any limitations. The PERI formwork systems with their manifold applications and the completely convincing PERI UP Rosett shoring solution offered maximum safety and guaranteed the successful implementation of this very difficult project.
Jacek Mosiej | Piotr Faron
Construction manager | Construction manager
Interested in learning how PERI can support your next project?
Call us on +971 (0) 4 326 2992 to discuss your requirements further.
Location
Temple of Divine Providence, Poland
