Accessories for Formwork

Browse our range of formwork accessories.

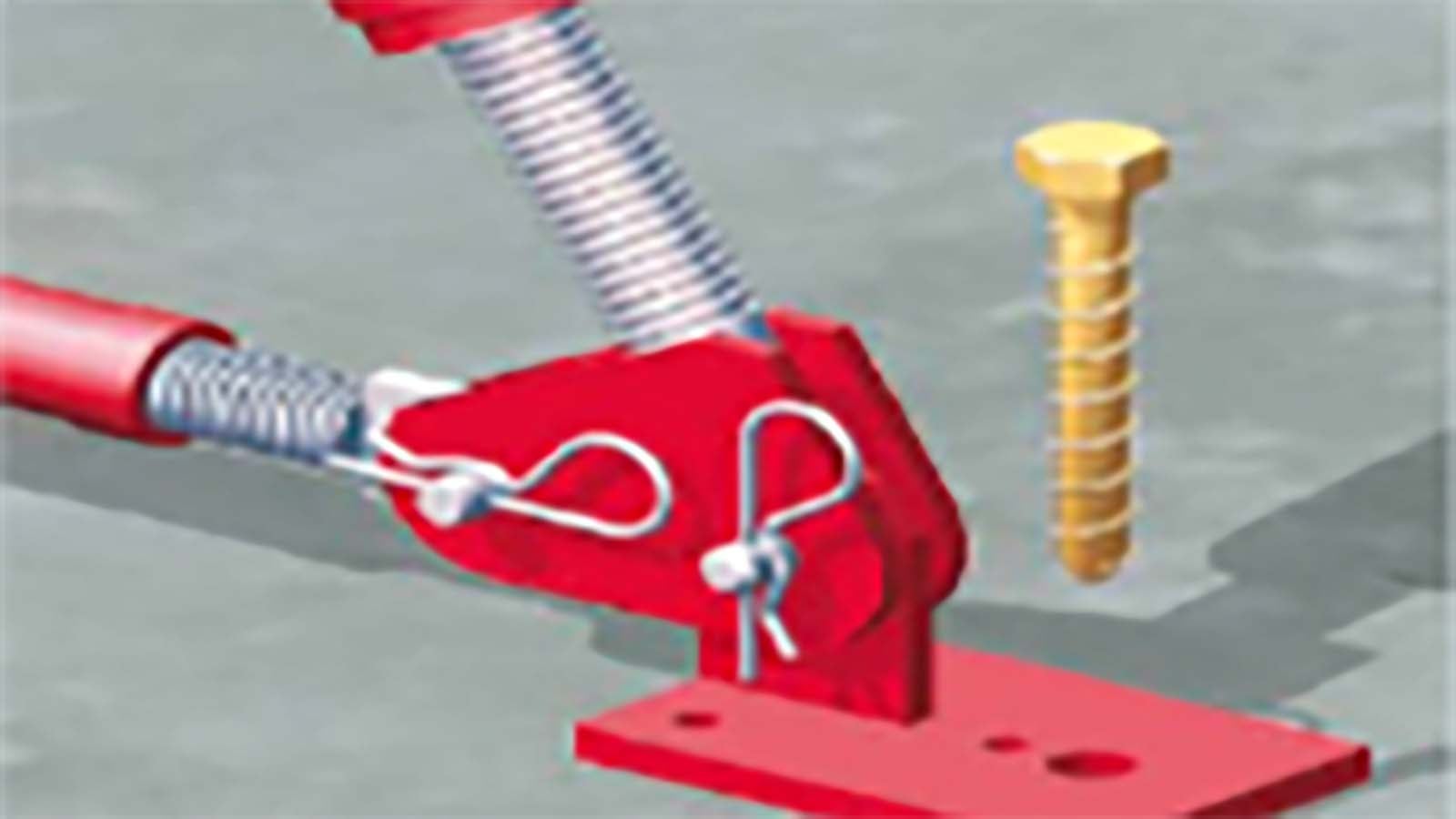

  • Anchor Bolt 14/20, used for fixing push pull props
    Anchor Bolt 14/20

    Details

    • Simple insertion on concrete
    • Anchor length 130mm
    • Required Drill Ø14mm
    • Spanner size SW 24
    • Reusable
    • Weight: 0.80 kg

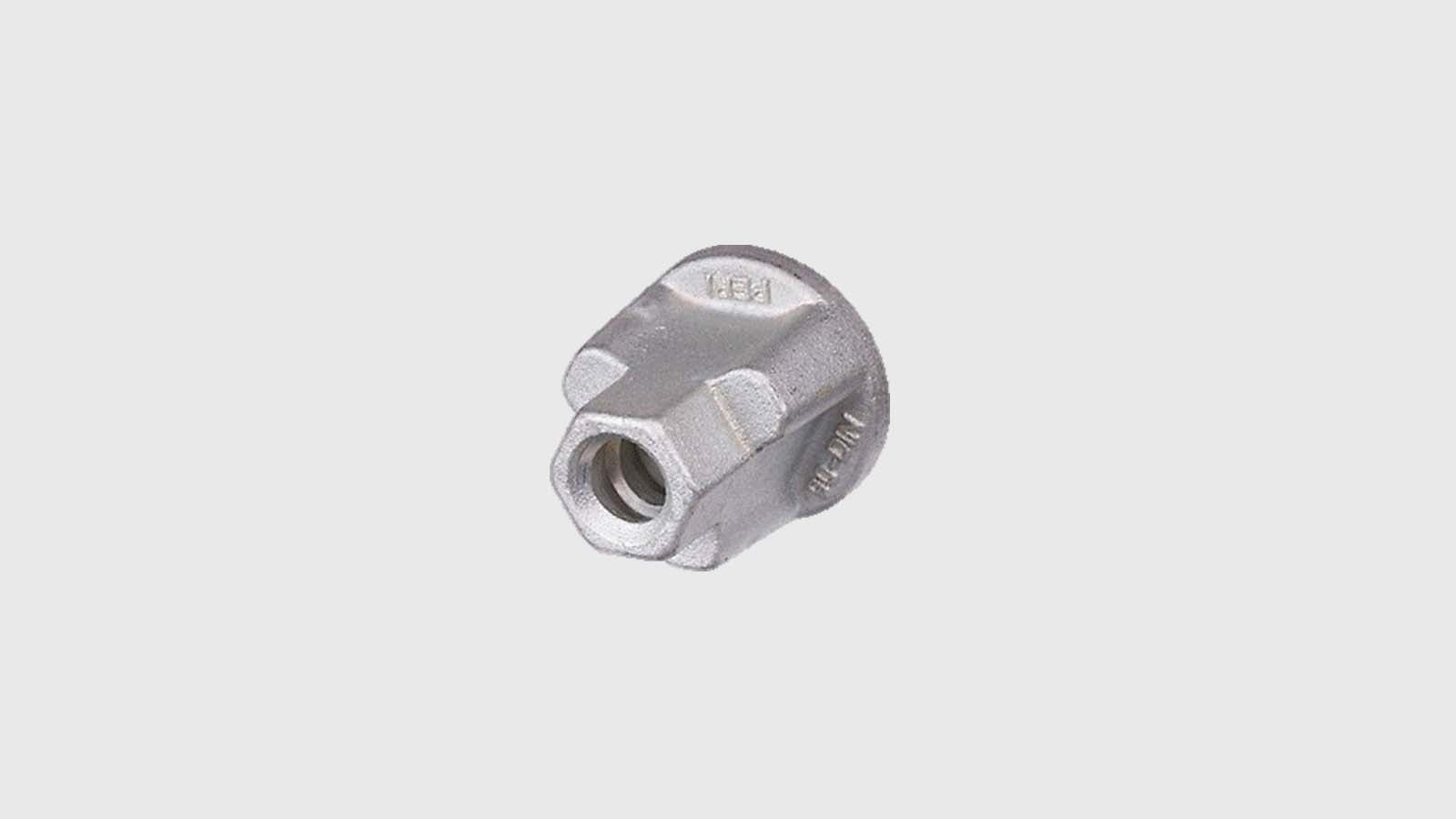

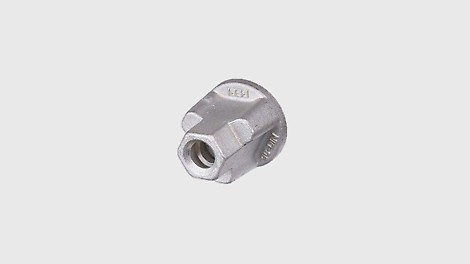

  • Cam Nut, for anchoring with tie rod Ø15
    Cam Nut

    Details

    • Permissible Load 90 kN
    • Spanner size SW 27
    • Galvanized
    • Weight: 032 kg

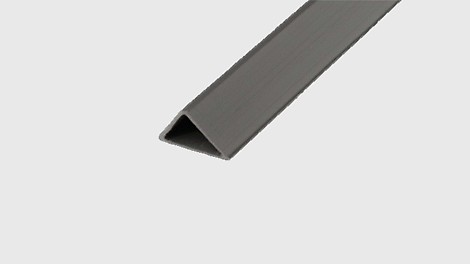

  • Chamfer strip, creates a bevel at the edge of finished concrete
    Chamfer Strip

    Details

    • For columns, beams, slabs etc.
    • Chamfer concrete edges by 450
    • High resistance Plastic
    • With / without nail strip
    • Tolerance ± 1.5 mm
    • Reusable

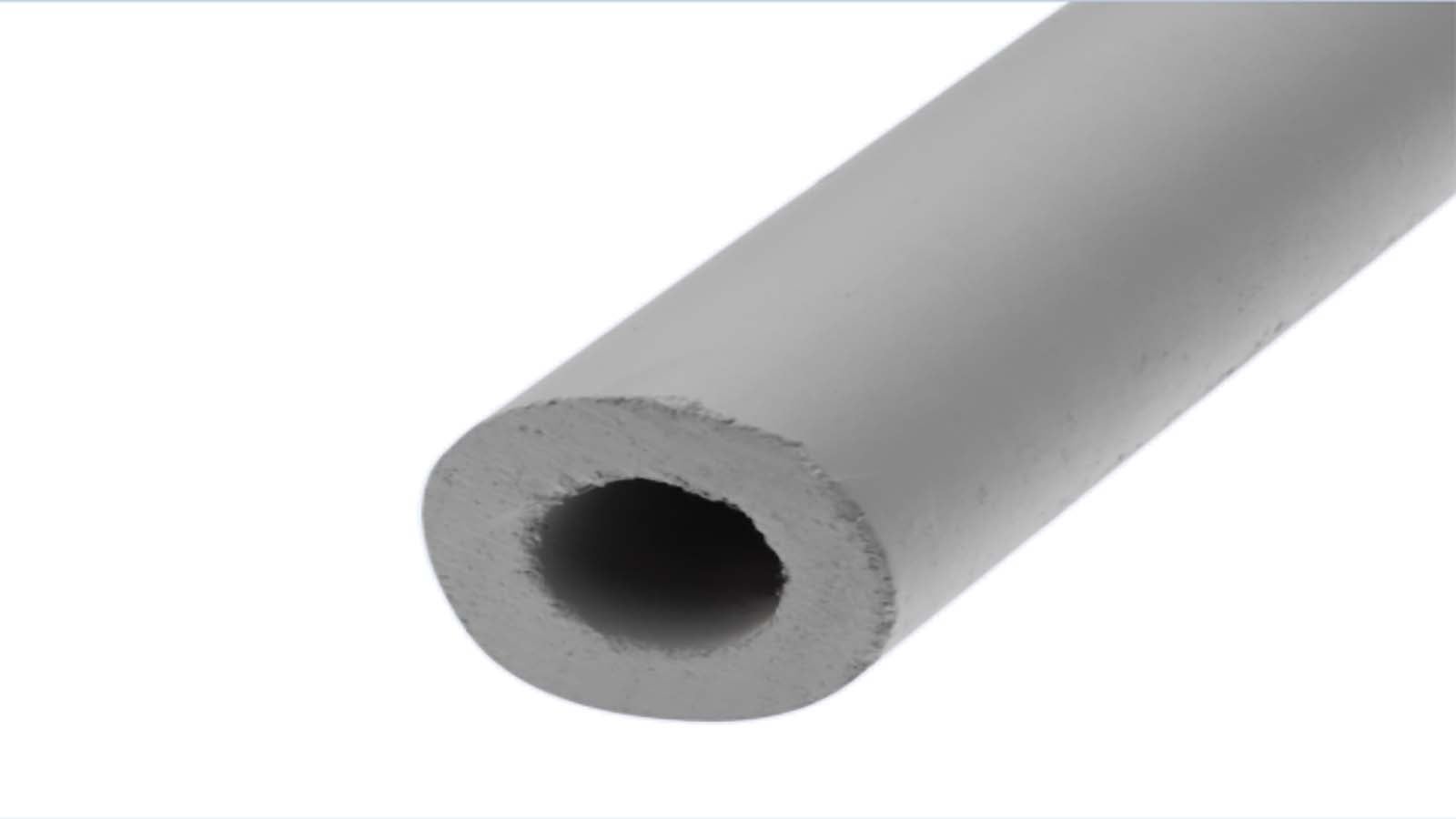

  • Concrete Spacer Tube, the form-tie spacer
    Concrete Spacer Tube

    Details

    • Extruded fibre reinforced concrete
    • High compressive strength
    • Conforms to Eurocode 2/DIN 18216
    • Suitable for soundproof/fire walls F90
    • For distance tubes Ø22-32 mm
    • Weight: 1.83 kg / Length: 1.25 m
    • Pallet: 600 pcs (750 m)

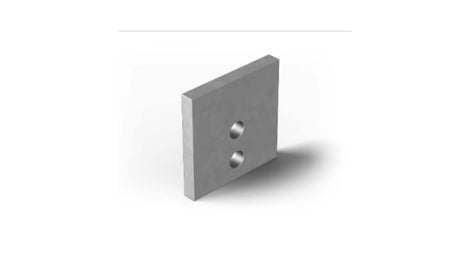

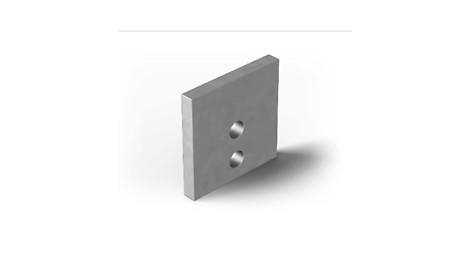

  • Counterplate, for anchoring with tie rod Ø15
    Counterplate

    Details

    • Permissible Load 90 kN
    • Diameter of drilled holes Ø 20 mm
    • Plate dimensions 120x120 mm
    • Weight: 1.62 kg

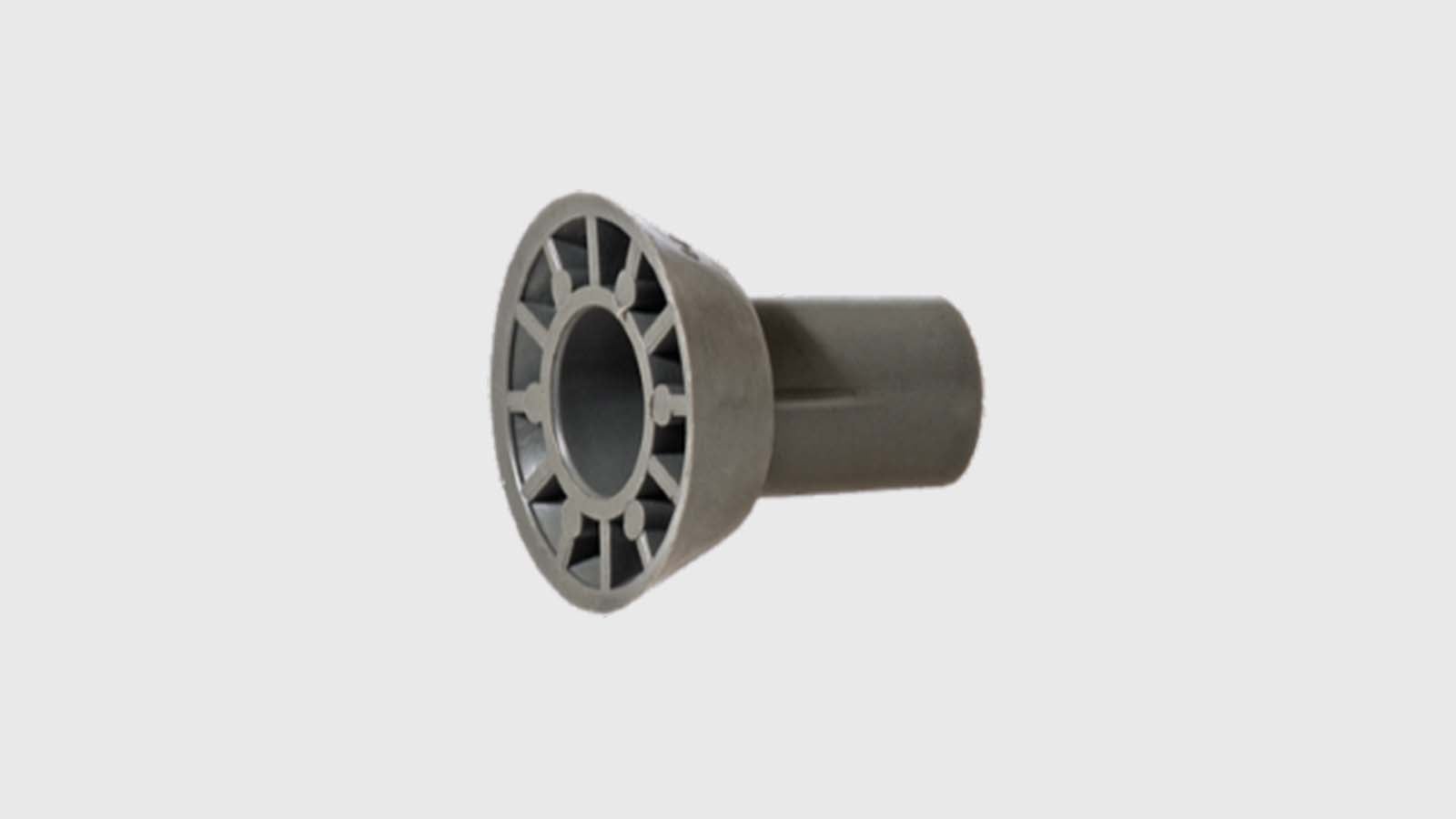

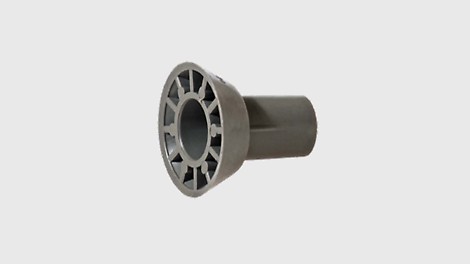

  • Distance cone, for use together with form-tie spacer tube
    Distance Cone

    Details

    • Allows the spacer tube to be cast deeper into the wall (10mm)
    • Large contact area on formwork
    • Suitable for use with plastic and concrete spacer tube Ø22 mm
    • Reusable (can be removed)
    • Fitting length: 10 mm
    • Bag: 500 pcs / Pallet: 30,000 pcs



  • The Hex Nut Coupler, for coupling 2 tie rods Ø15
    Hex Nut Coupler

    Details

    • Permissible Load 90 kN
    • Spanner size SW 30
    • Galvanized
    • Weight: 0.40 kg

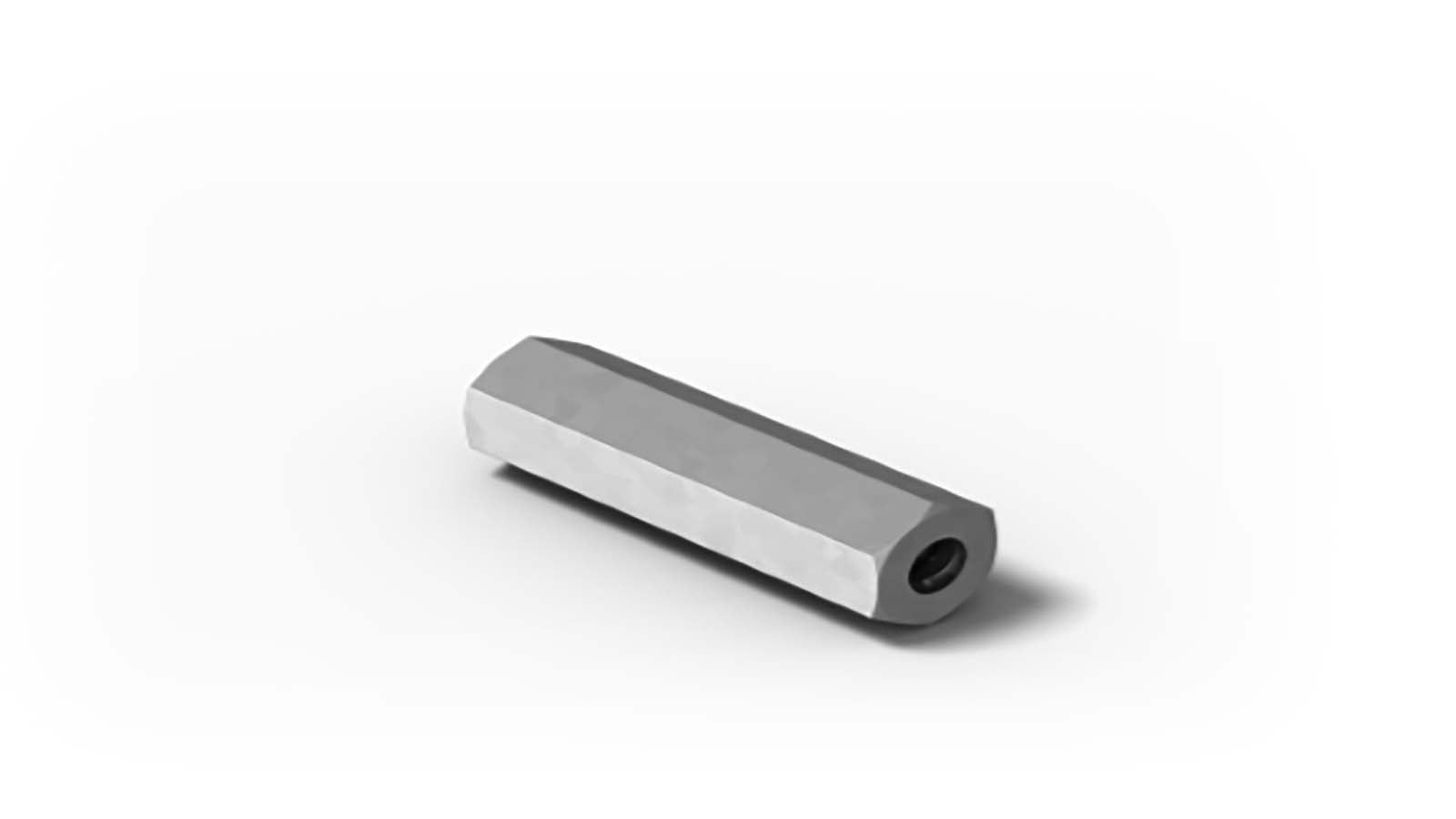

  • Hex nut weldable, for anchoring tie rod Ø15 into reinforcement
    Hex Nut Weldable

    Details

    • For anchoring with Tie Rod Ø15
    • Permissible Load 90 kN
    • Weldable
    • Weight: 0.22 kg

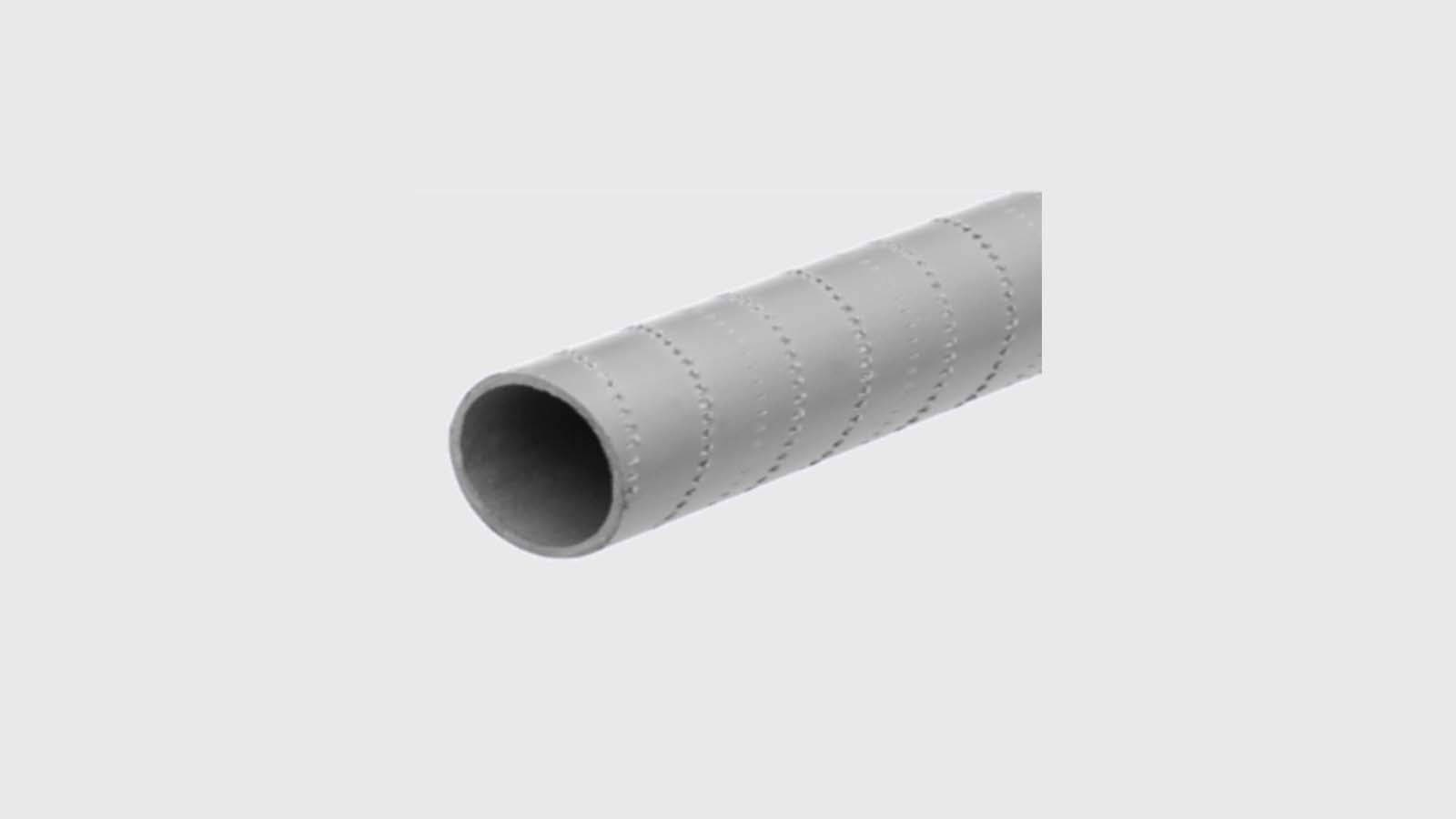

  • Plastic Spacer Tube (PVC), the form-tie spacer
    Plastic Spacer Tube (PVC)

    Details

    • Secure wall thickness
    • Protecting reusable tie rods
    • For covering tie rods Ø15mm
    • Standard length of tube is 2.0m
    • Longer tube length upon request
    • Length: 2 m
    • Bundle: 50 pcs(100m) / Pallet: 1,500 pcs (3,000 m)

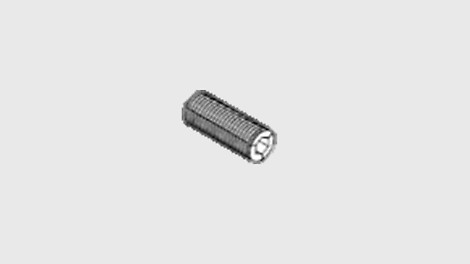

  • Rock Anchor HB, for anchoring formwork into existing concrete rock
    Rock Anchor

    Details

    • For Tie Rod Ø15
    • Permissible Load 90 kN
    • Diameter of drilled hole Ø36.5-38.0 mm
    • Use Hilti TE-y 37/575 core drill
    • Weight: 0.45 kg

    (To be used together with Pretention Jack for tie rods)

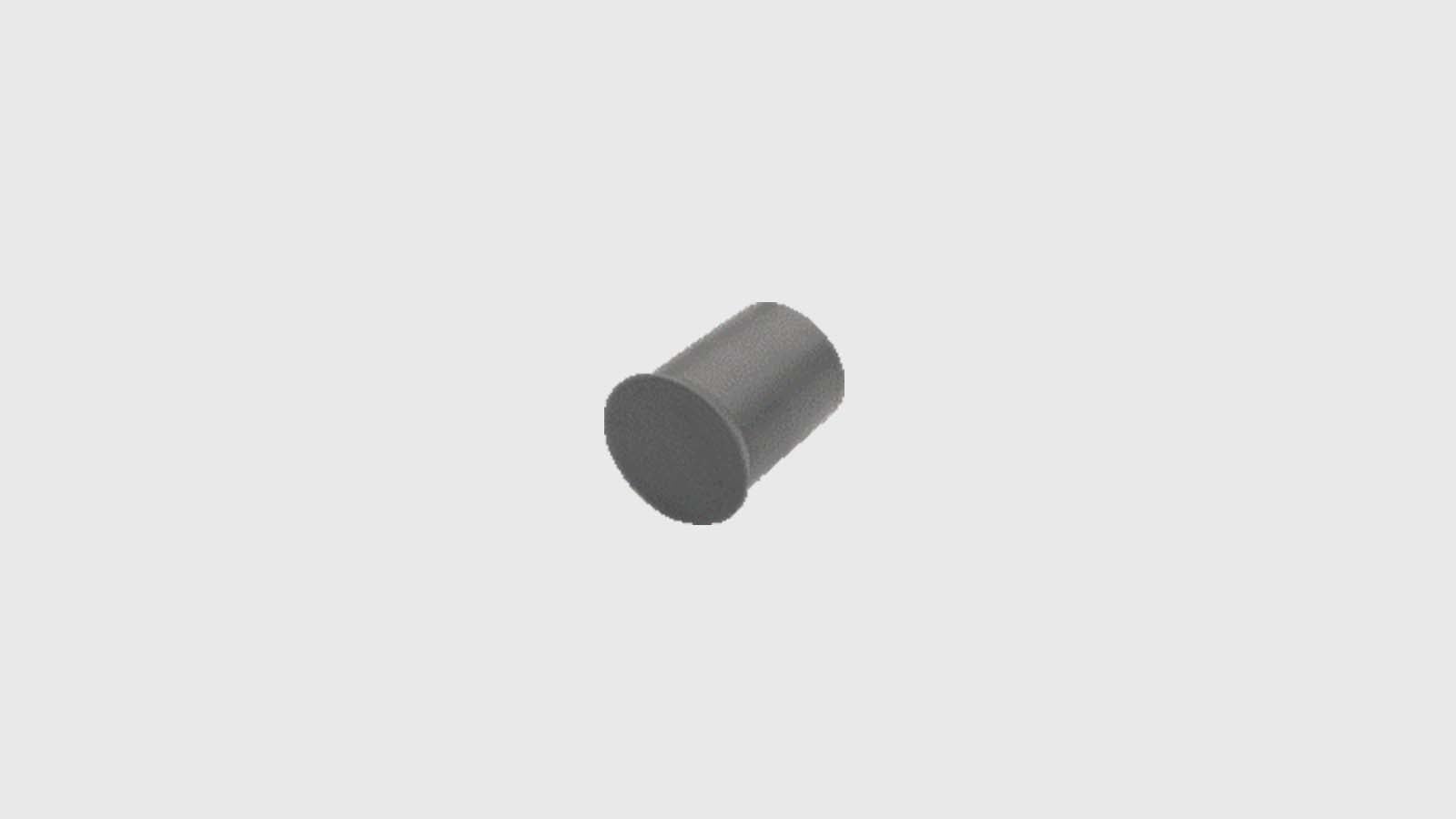

  • Sealing plug, for sealing tie holes
    Sealing Plug

    Details

    • To fill holes of Ø22 spacer tubes after removing plastic cones
    • No sealing compound required
    • Insert in tie hole via hand or tap firmly in place with a hammer
    • Fitting length: 17 mm
    • Bag: 1,000 pcs / Pallet: 48,000 pcs

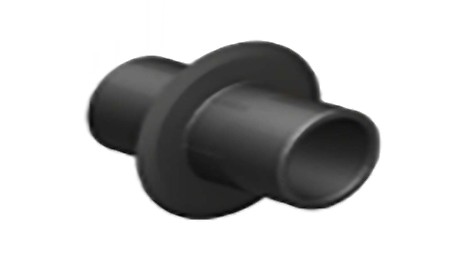

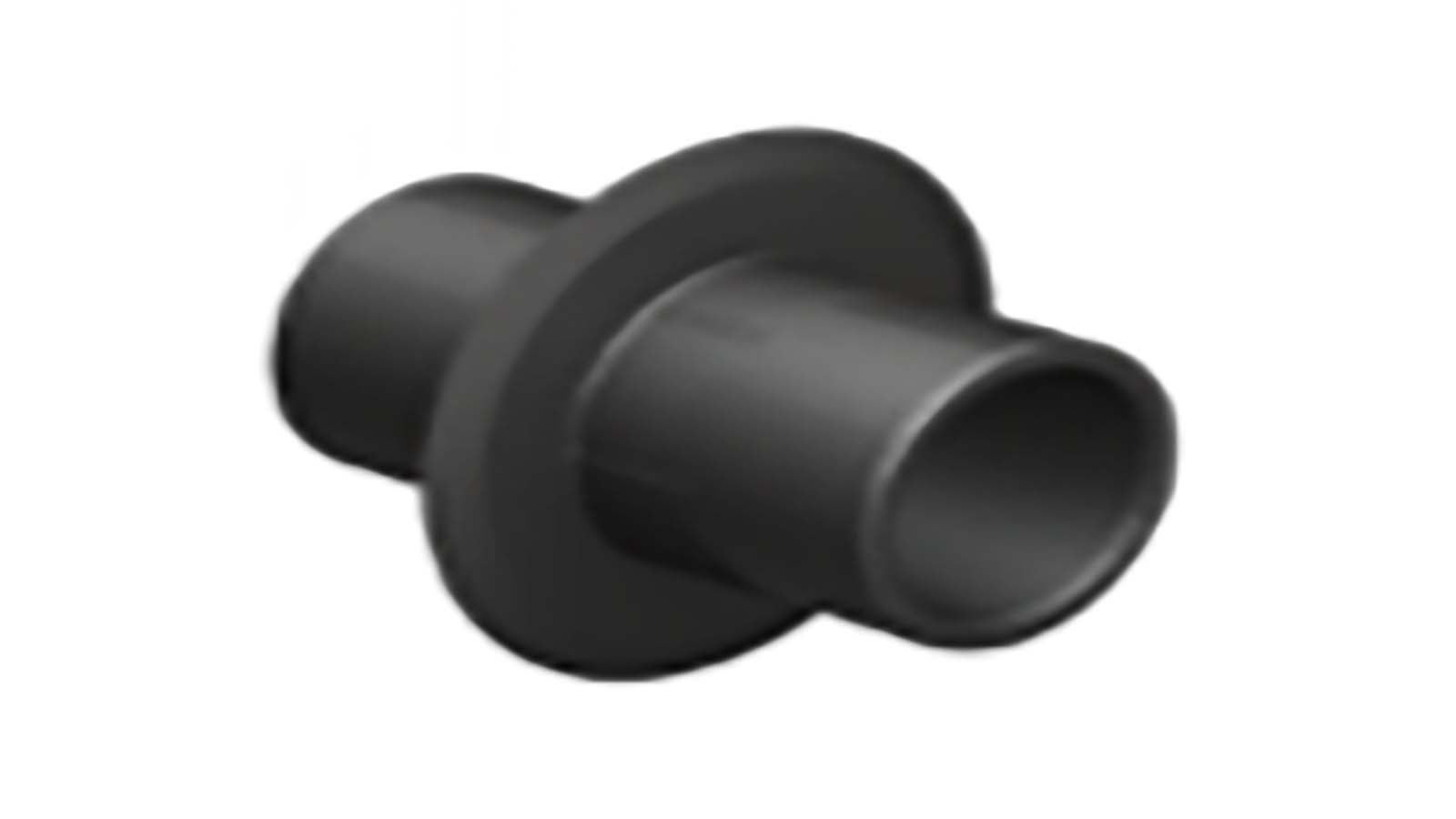

  • Sleeve Connector, for connecting two spacer tubes
    Sleeve Connector

    Details



    • For extending length of spacer tubes
    • Suitable for use with Ø22 mm tube
    • Fitting length: 10 mm
    • Bag: 250 pcs / Pallet: 35,000 pcs

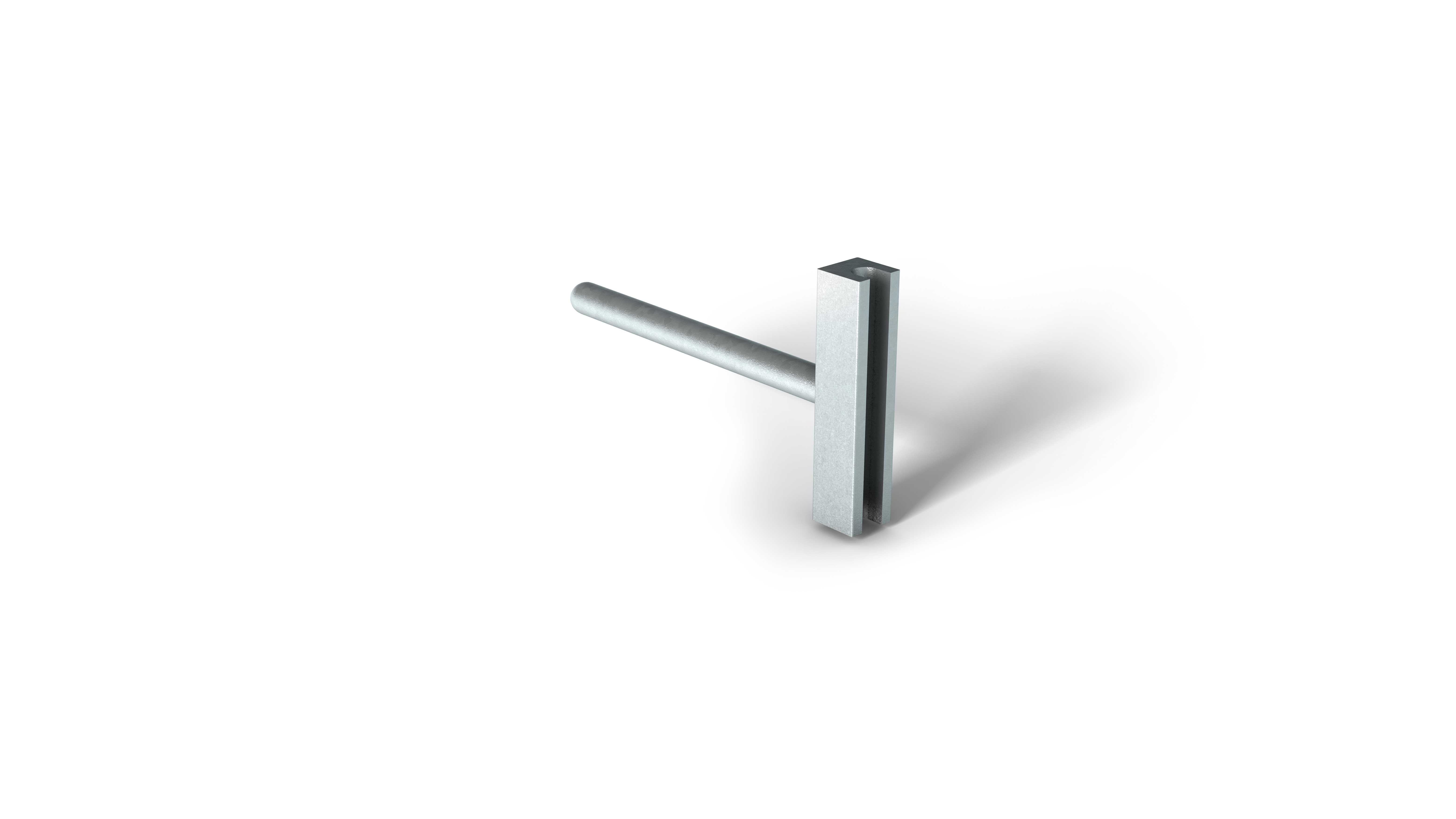

  • Tie Rod Wrench, for easy handling of Tie Rod Ø15
    Tie Rod Wrench

    Details

    • Permissible Load 90 kN
    • Plate diameter Ø96 mm
    • Galvanized
    • Weight: 1.26 kg

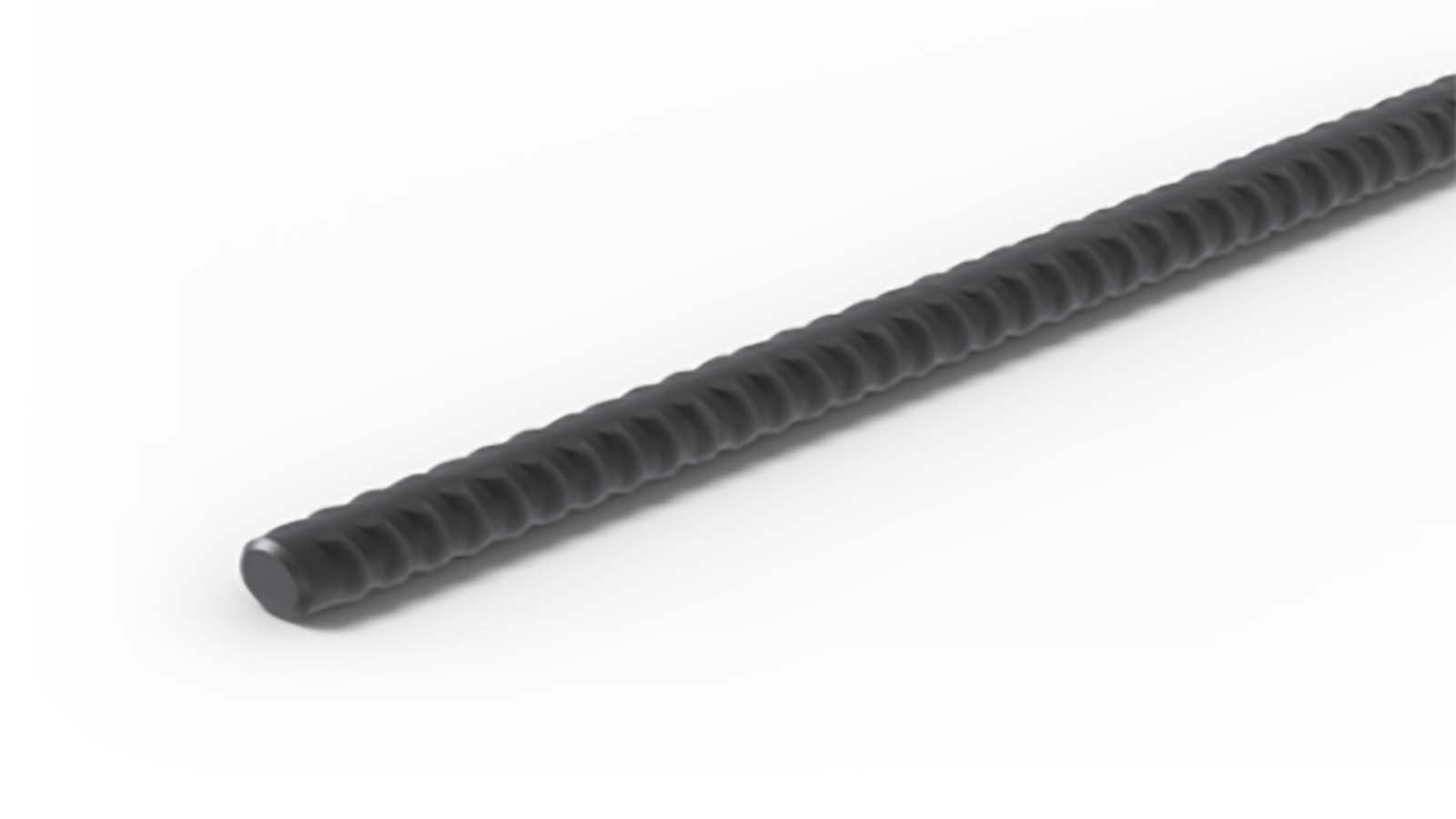

  • Tie Rod Ø15, for formwork applications
    Tie Rod Ø15

    Details

    • Hot rolled steel
    • Grade St 900/1100
    • Permissible load of 90 kN
    • Diametres from Ø15-26 mm
    • Weldable / non-weldable
    • Corrosion protection available
    • Bundle: 100 pcs (600 m)

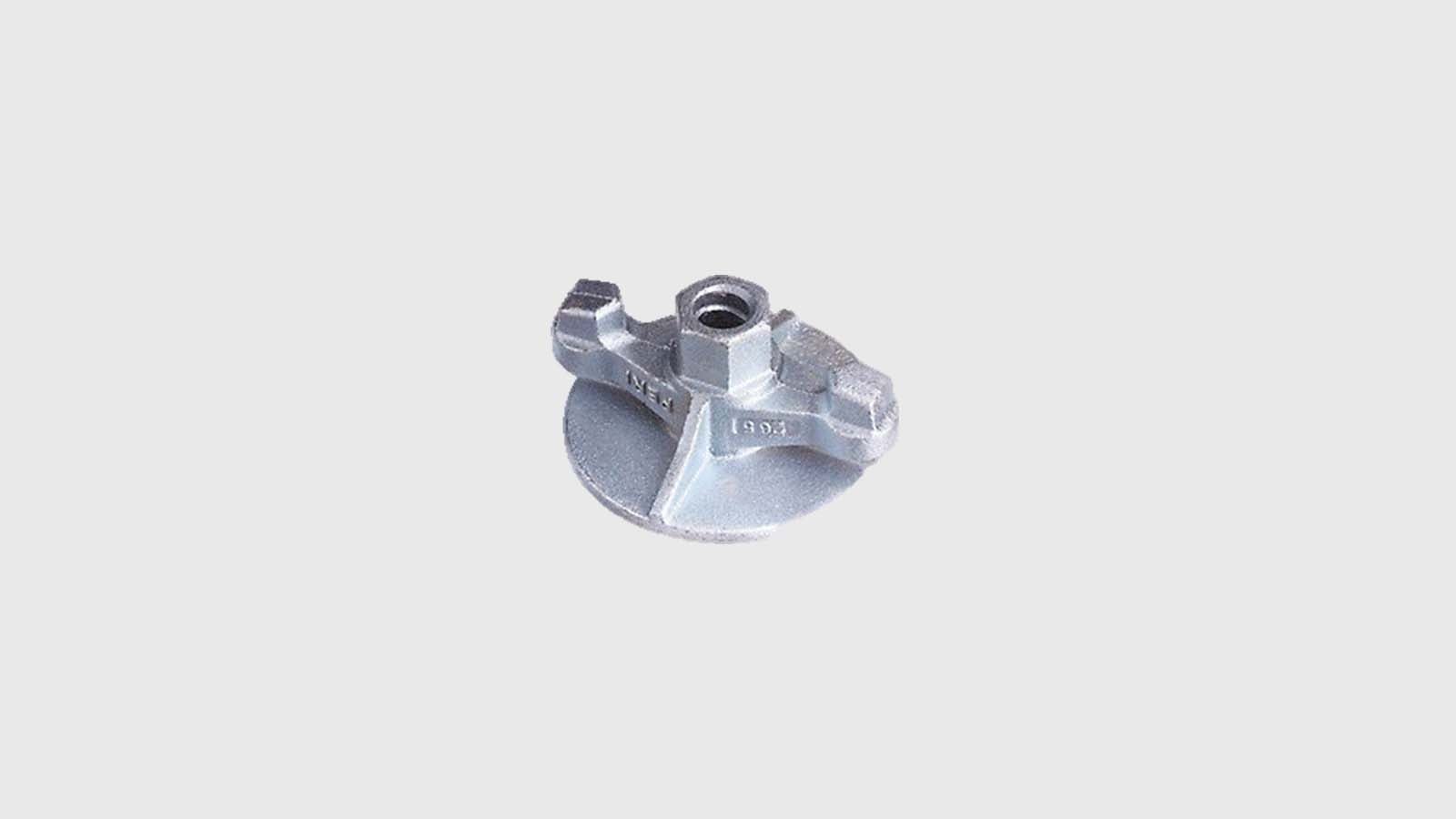

  • Wingnut Counter Plate, for anchoring with tie rod Ø15
    Wingnut Counterplate

    Details

    • Permissible Load 90 kN
    • Plate diameter Ø96 mm
    • Wrench size SW 27
    • Galvanized
    • Weight: 0.80 kg

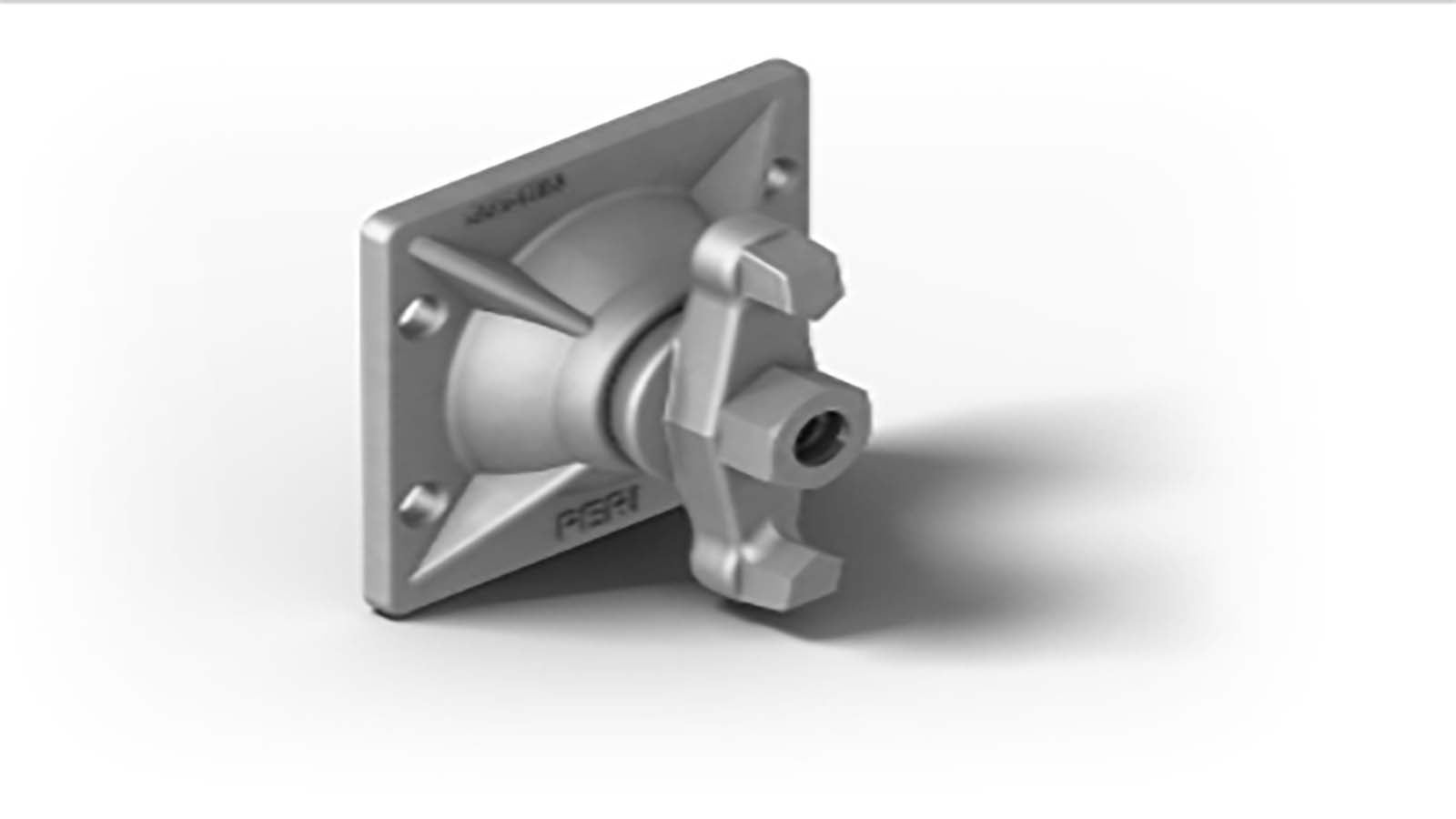

  • Wingnut Pivot Plate, for anchoring with tie rod Ø15
    Wingnut Pivot Plate

    Details

    • Permissible Load 90 kN
    • With Pivoting Captive Nut
    • Maximum angle of tilting 8o
    • Plate diamension □117 mm
    • Wrench size SW 27
    • Galvanized
    • Weight: 1.66 kg

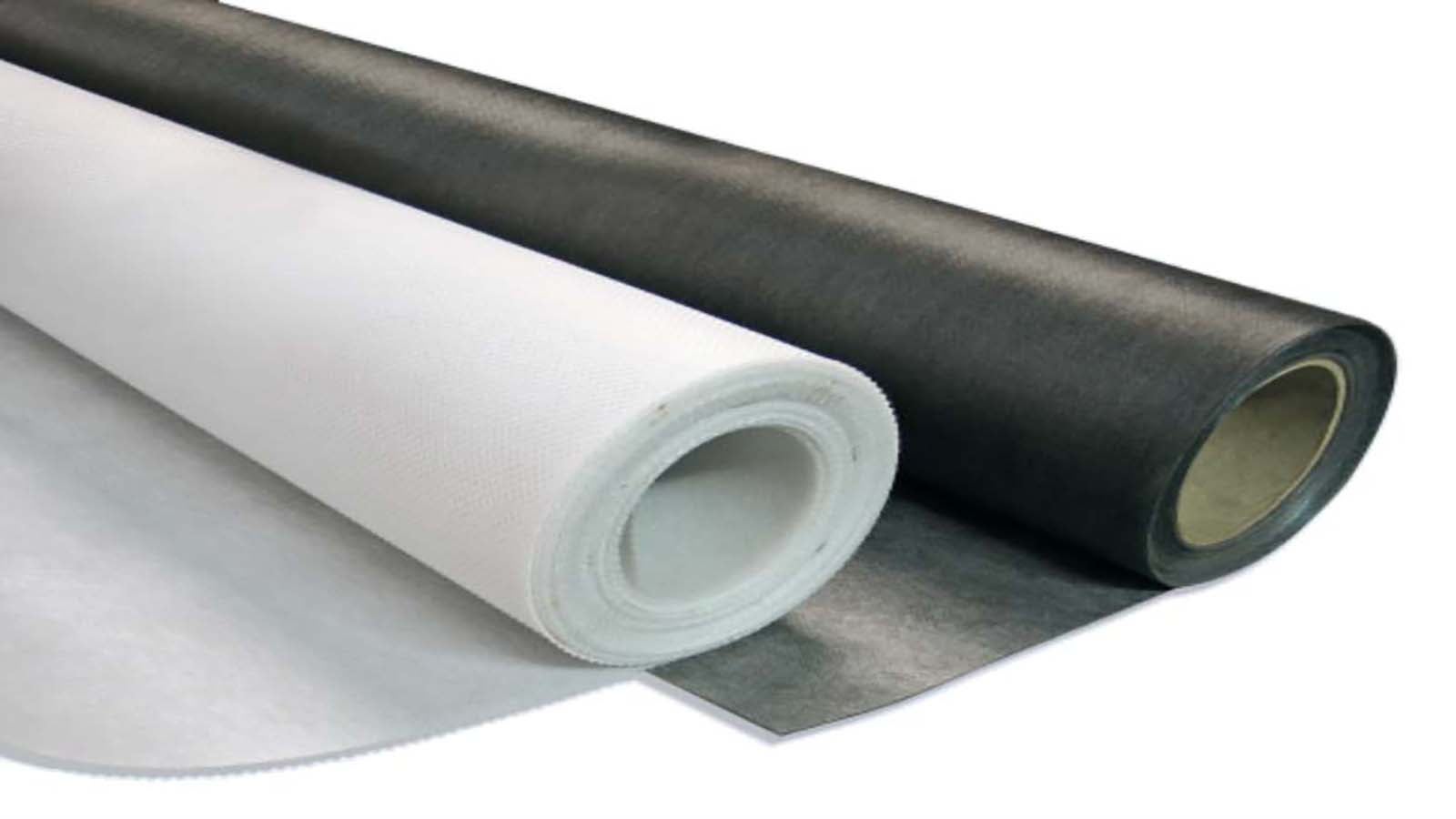

  • Zemdrain CPF liner, controls permeability formwork liner
    Zemdrain CPD Liner

    Details

    • Reduced surface w/c ratio
    • Blowhole free, smooth surface
    • High surface durability
    • Reduced surface abrasion
    • Increased resistance to all aggressive elements

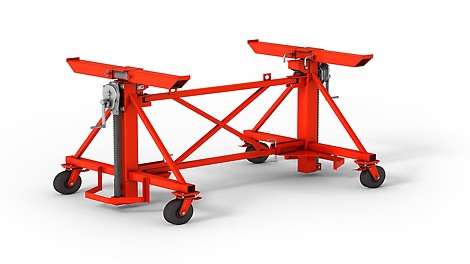

  • Table Striking and Transportation Trolley
    Table Striking and Transportation Trolley

    Details

    Slab tables are moved horizontally and aligned using the table striking and transportation trolley. The adjustable chassis also allows passage through narrow openings.

    Simple equipment operation
    Slab tables can be lowered evenly and smoothly by means of 2 winches.

    Chassis can be positioned laterally
    With a width of only 90 cm, driving through door openings etc. is possible.

    High bearing capacity
    The equipment has a load-carrying capacity of max. 2 t.

    Variable working heights
    By means of extension units, the working height of the transportation trolley can be adapted to the required position on the building.

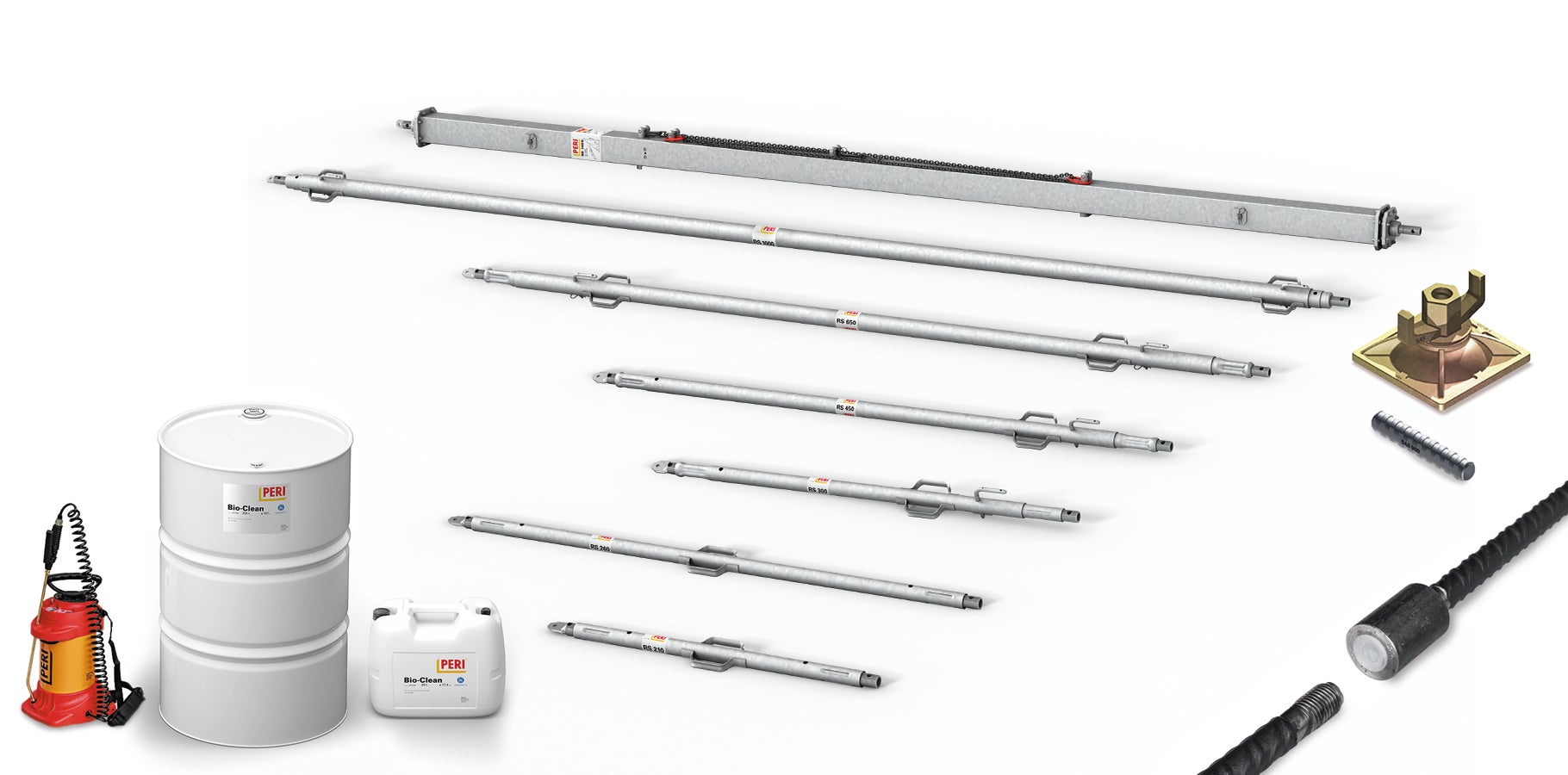

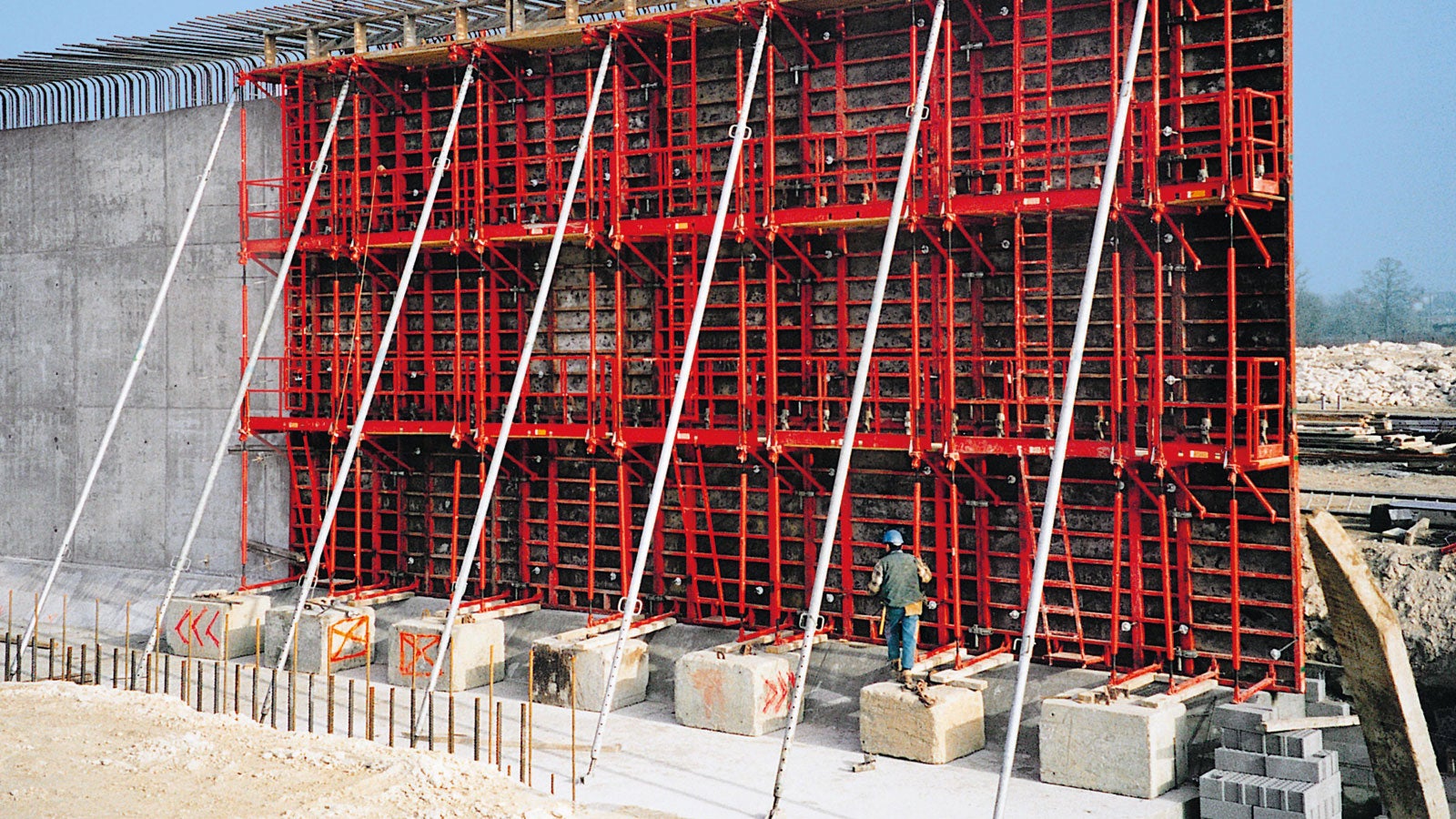

  • Push Pull Props RS

    Details

    • Adjustable braces for fixing wall, column or beam formwork
    • For use with perforated concrete elements
    • To be used together with RS Base Plate: 117343

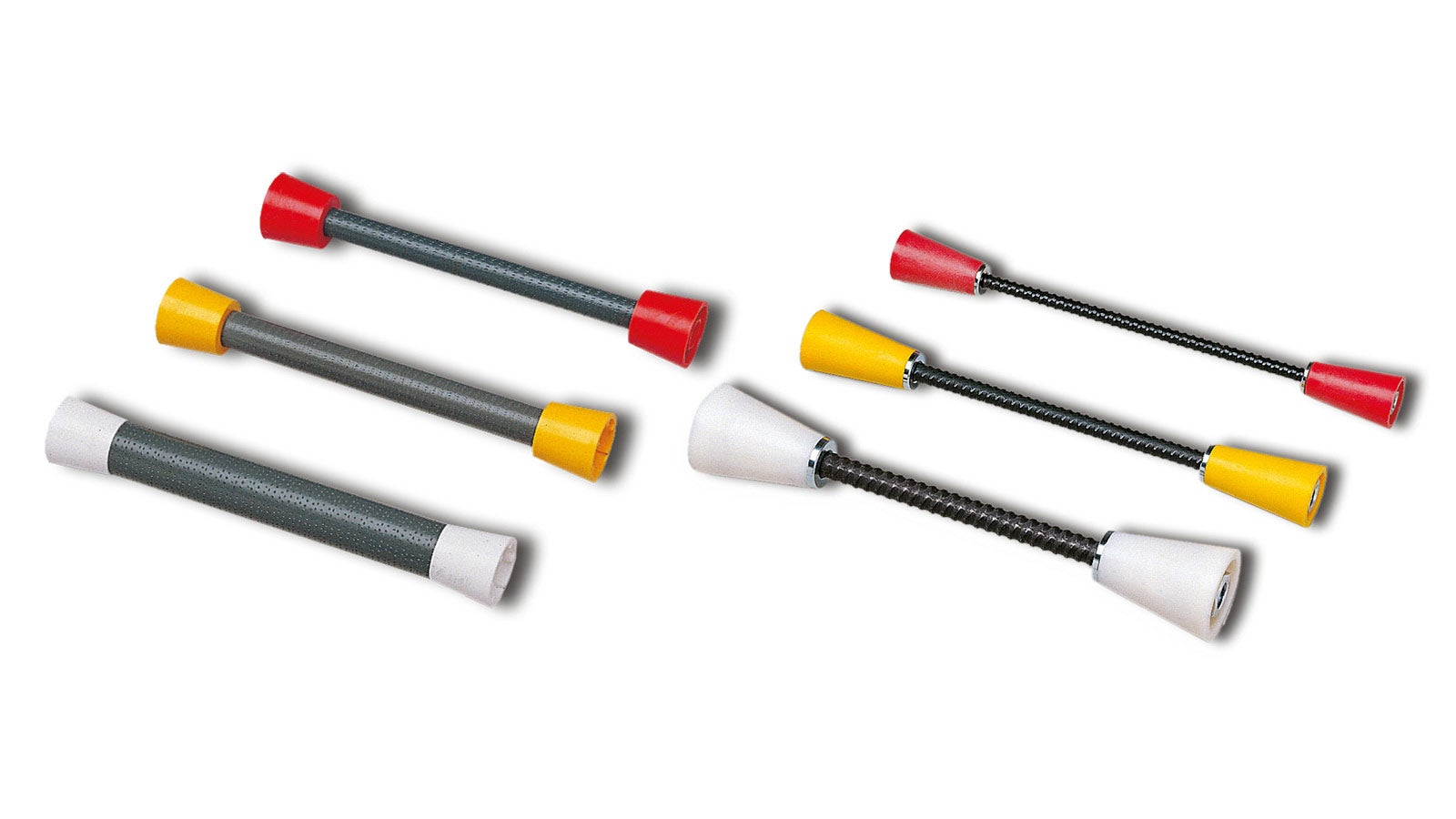

  • PERI tie systems: The DK and SK tie systems serve to ensure subsequent, reliable sealing of tie points.
    PERI Tie Technology

    Details

    With the DK and SK Tie Systems, tie points can also subsequently be reliably sealed. The tie points are sealed with concrete cones using a specially-developed sealing compound.

    Guaranteed leak-proof
    Waterproof and gas impermeable, fire-resistant, soundproof and diffusion-proof as well as approved for drinking water

    Appropriate availability
    Cones and spacer tubes for a range of tie diameters are available

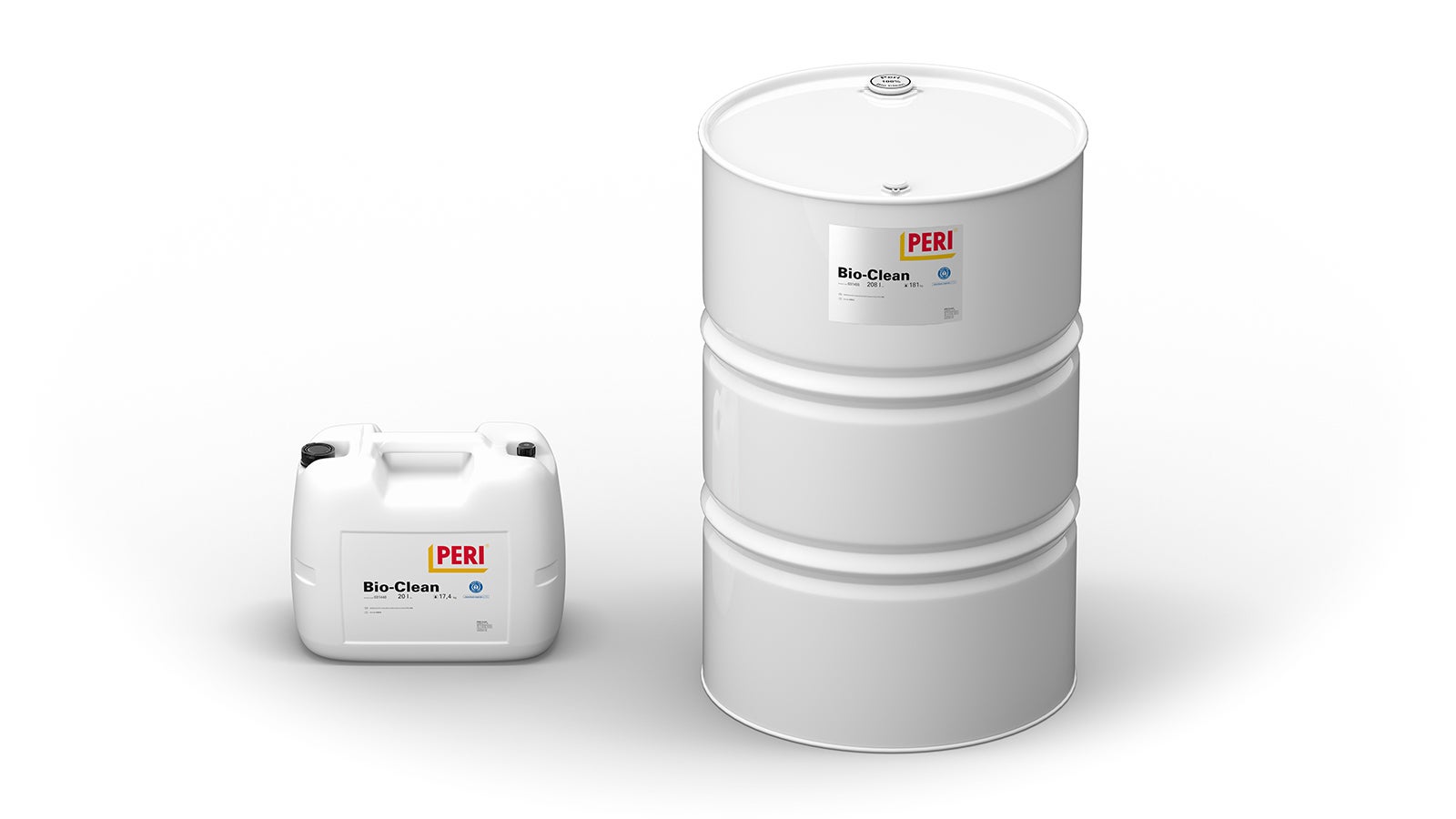

  • PERI Clean, PERI Bio Clean and PERI Plasto Clean - Concrete release agent for all formwork and equipment
    Release Agent

    Details

    PERI Clean, PERI Bio Clean and PERI Plasto Clean are liquid, chemically and physically effective concrete release agents. They can be used for standard formwork and construction site equipment, prevent rust and ensure prop and spindle threads run smoothly.

    • Manufactured on a mineral oil basis
    • Solvent-free
    • Creeping oil properties regenerate resinous formwork surfaces
    • Protects construction equipment and machines against rust
